Product Code G200 bulk
Product Name Woven Lashing - G200 - 40mm, 5000/8500 daN, 200m loose in polybag / pallet box
Product Size 40 mm (7/4")
Weight 0.0000 KG
MOQ 60
Custom Tariff No.
GTIN/EAN13 EAN13 is valid.
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

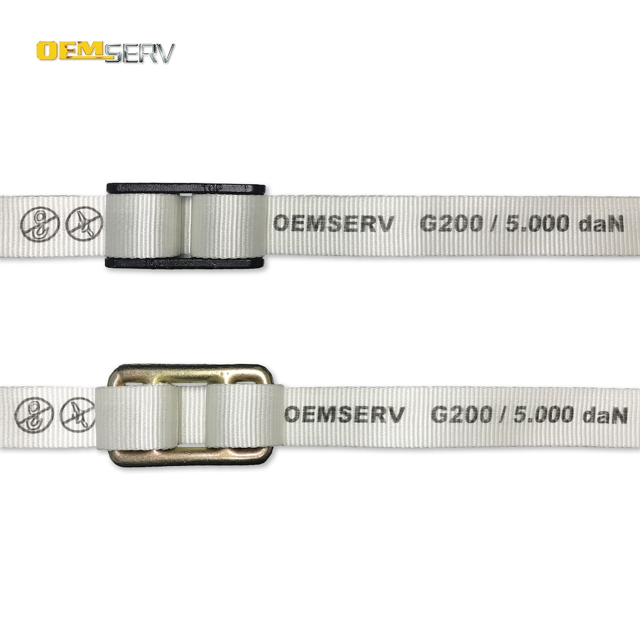

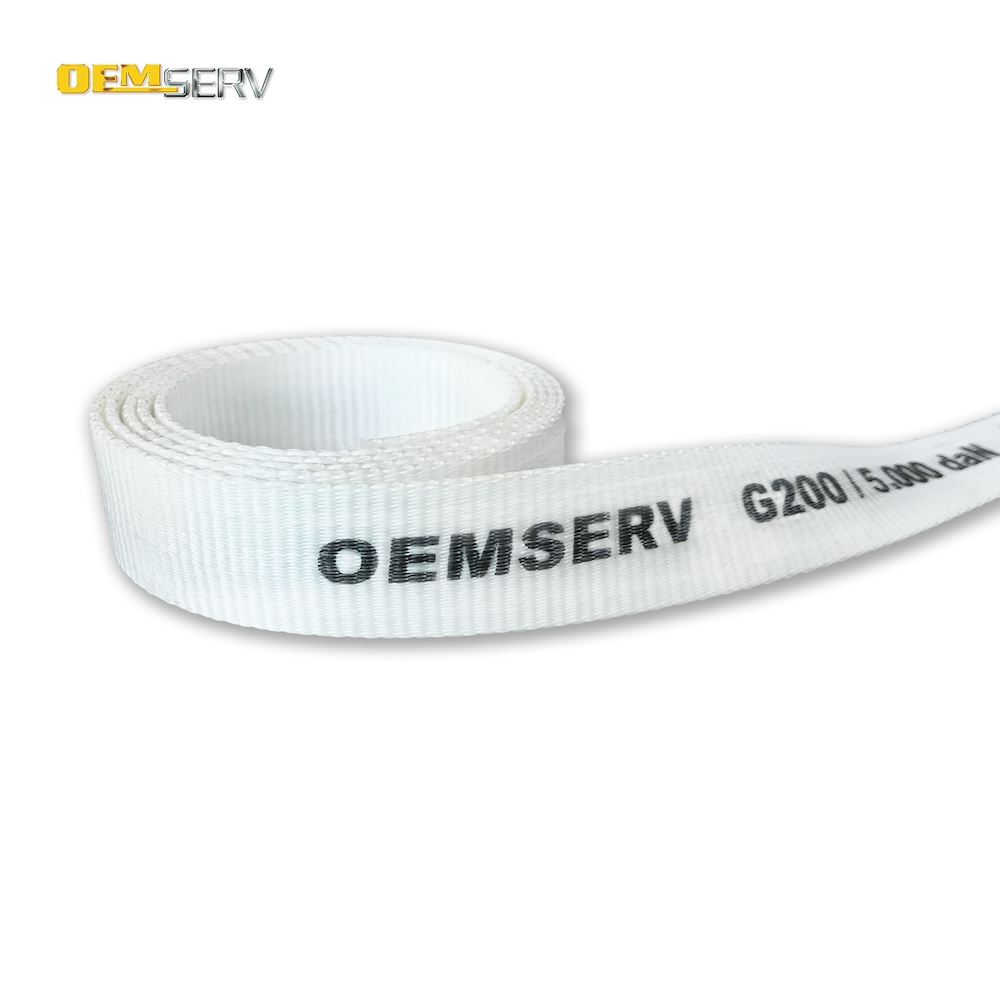

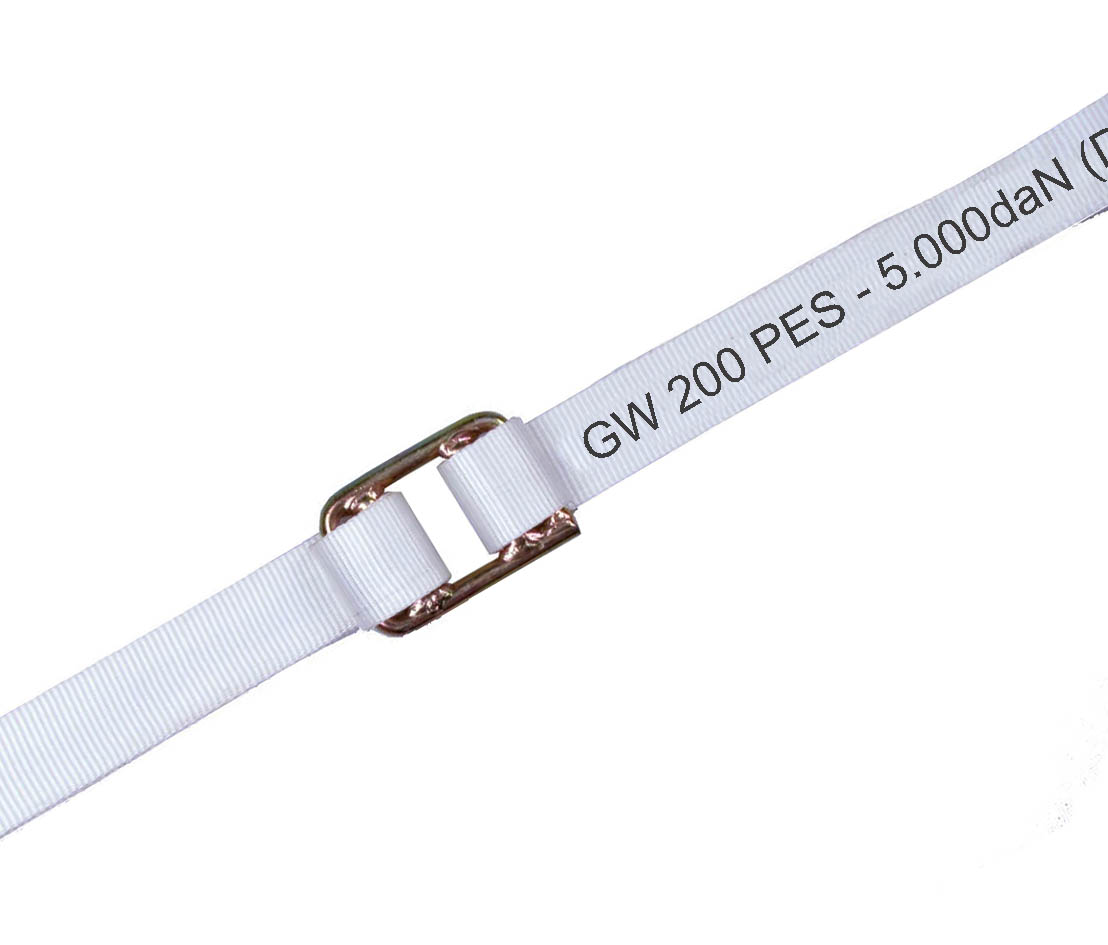

Polyester Woven Lashing

Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 32mm to 50mm
  • linear breaking strength available from 1500 to 7500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating
1. Technical data
Material High tensile polyester yarns, woven
Processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear strength 000 daN
Minimum system strength ooo daN
3. Tested data
Linear breaking strength 000 daN
System breaking strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of Origin China

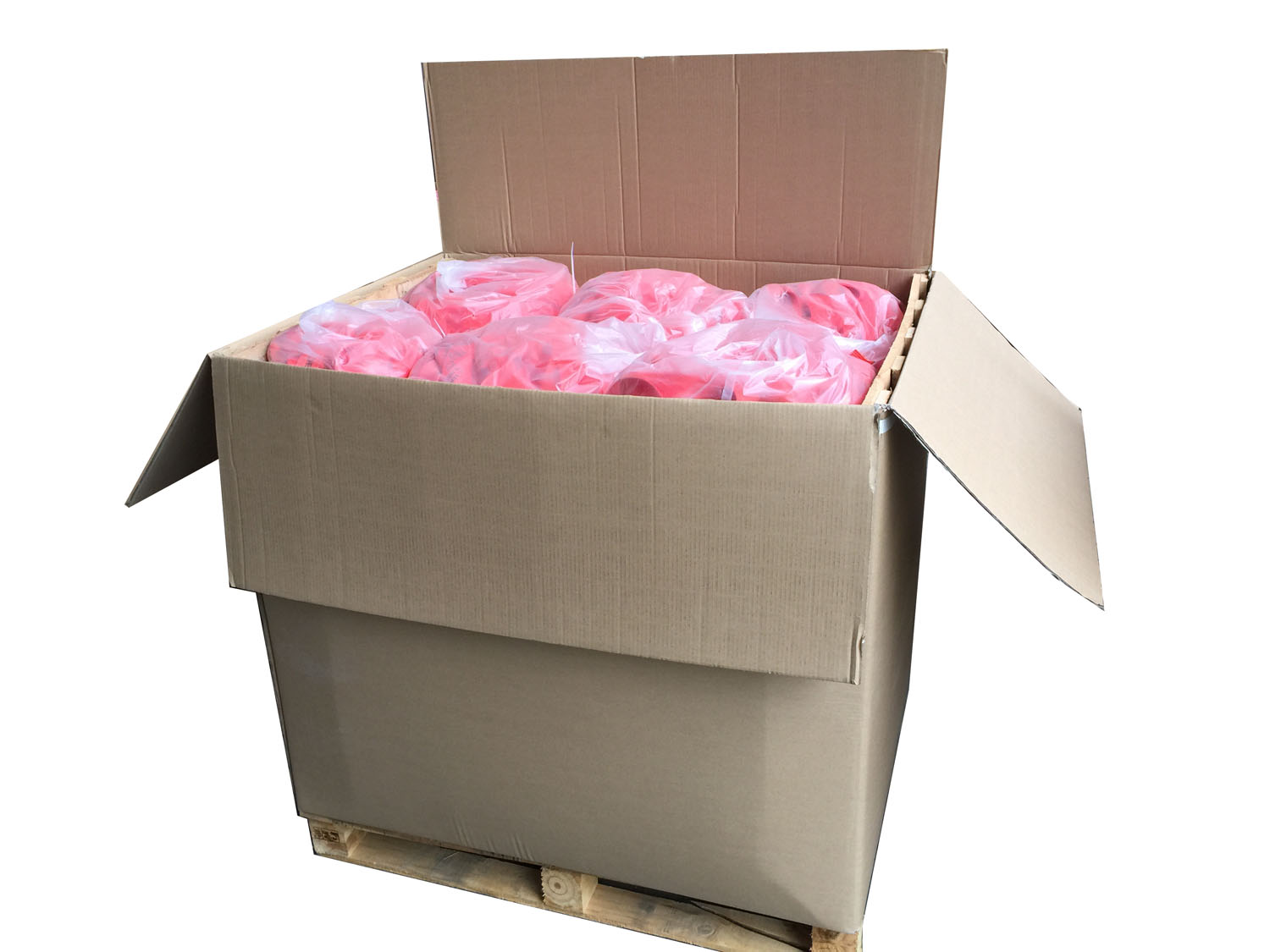

Standard Container
Items per Carton 18
Cartons per Palette 2
Net weight Carton 350.46 KG
Gross weight Carton 366.96 KG
Dimension Carton 110 x 80 x 94 cm ( 0.8272m³ )
Items on Palette 36
Palette size 1100x800 mm
Total weight per Palette 0.00 KG
File Name Description File Size Mime Type
G200 & FS40 GL TAS00002DJ.pdf New 2020 GL certificate 285757 application/pdf Download
SGSwovenBelts.pdf SGS Report 187370 application/pdf

Login to Download

RoHsGW75PES.pdf RoHS Report 277567 application/pdf

Login to Download

REACH138_WOVEN STRAP.pdf Reach Certificate 293427 application/pdf

Login to Download

SVHC-5S Report Woven Strap.pdf SVHC-5S Report 1000154 application/pdf

Login to Download

2017-SVHC-5 NEW-woven strap.pdf 2017-SVHC-5 NEW-Report 605518 application/pdf

Login to Download

GL GW 200 PES + GWS 40.pdf GL cerfificate 19945 application/pdf Download
