| Product Code | G105 bulk |

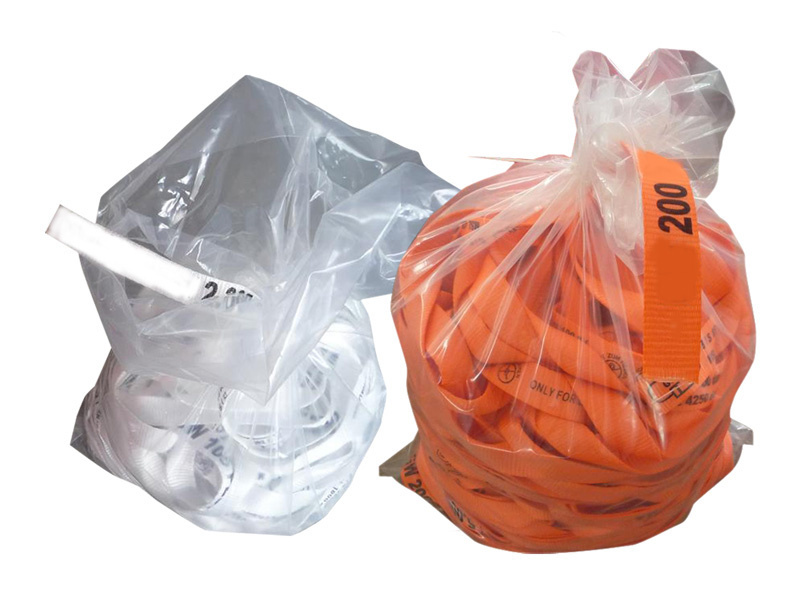

| Product Name | Woven Lashing - G105 - 32mm, 2000/3200 daN, 30x 250m loose in polybag / pallet box |
| Product Size | G. 32mm (5/4") |
| Weight | 9.5000 KG |
| MOQ | 60 |
| Custom Tariff No. | 5607500090 |
| GTIN/EAN13 | 4251858217515 |
| Price |
Polyester Woven Lashing
Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear strength | 2000 daN |
| Minimum system strength | 3200 daN |
| 3. Tested data | |
| Linear breaking strength | 000 daN |
| System breaking strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of Origin | China |

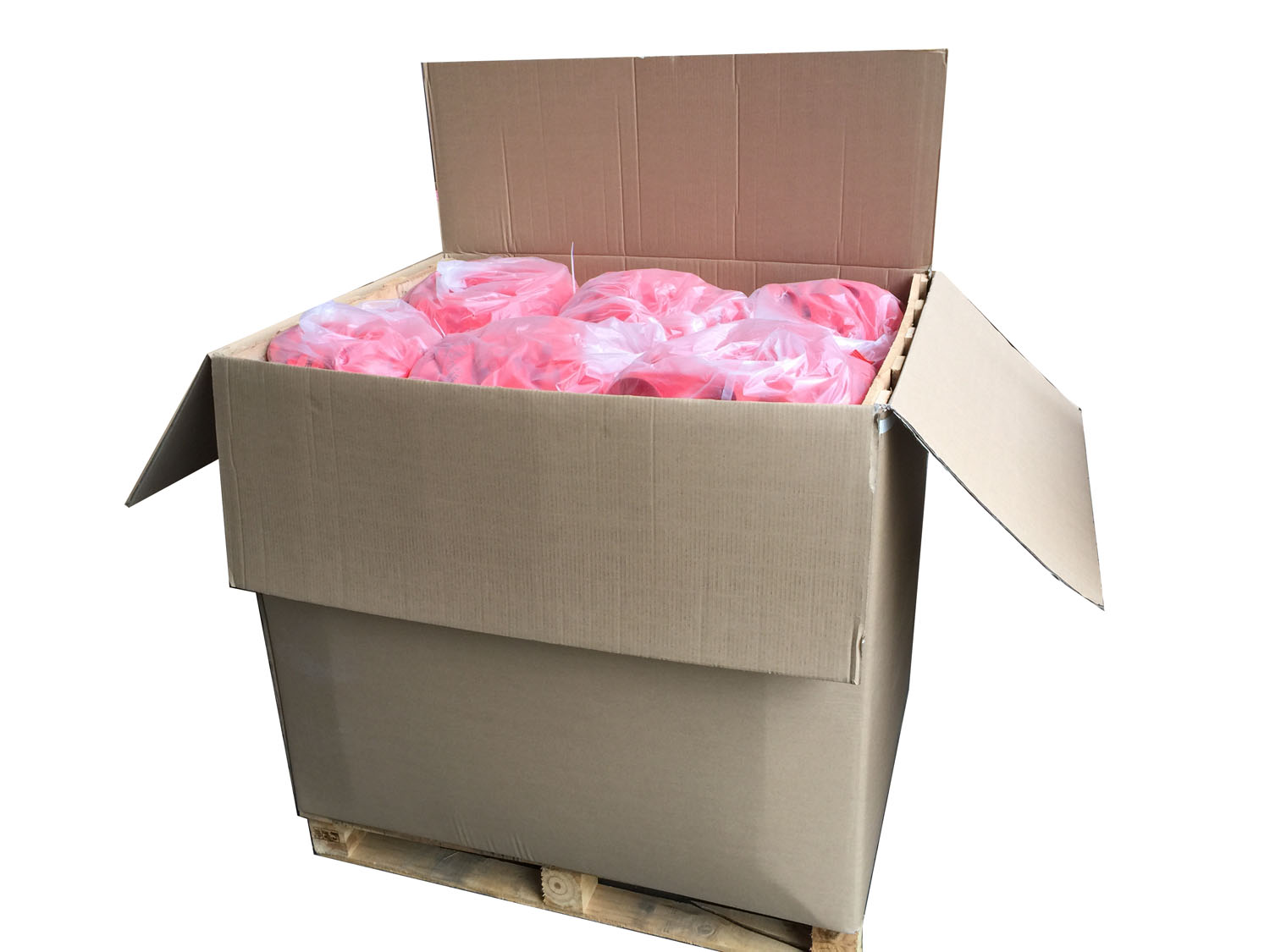

| Standard Container | |
| Items per Carton | 30 |
| Cartons per Palette | 2 |
| Net weight Carton | 286.56 KG |
| Gross weight Carton | 300.06 KG |
| Dimension Carton | 80 x 110 x 94 cm ( 0.8272m³ ) |
| Items on Palette | 60 |
| Palette size | 800 x 1100 x 940mm |
| Total weight per Palette | 478.00 KG |
| High Cube Container (HQ) | |
| Items per Carton | 30 |
| Cartons per Palette | 1 |
| Net weight Carton | 286.56 KG |
| Gross weight Carton | 300.06 KG |
| Dimension Carton | 37 x 37 x 40 cm ( 0.05476m³ ) |
| Items on Palette | 30 |
| Palette size | 800 x 1100 x 940mm |
| Total weight per Palette | 478.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| RoHsGW75PES.pdf | RoHS Report | 277567 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf |
