Product Code WB32BC7.0/250

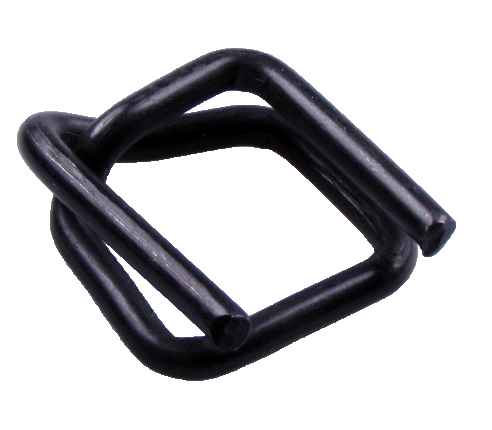

Product Name Black Coated Wire Buckle 32mm - BN10-3270N - Box of 250 pieces
Product Size 32 mm (5/4")
Weight 21.8800 KG
MOQ 48
Custom Tariff No. 7326208090
GTIN/EAN13 4251858250635
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES





Phosphated Wire Buckles

Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface
Another special design for our woven strapping

These phosphated wire buckles has also been made in our factory for many years already and

has performed without any problems ever since.

This special coating / treading makes the wire surface more blunt, an effect which is very
useful to prevent the strapping belt from sliding. It also protects the material from wear
and help prevent galling.

Special for our woven PES belts these buckles are in use.

Width:            32 mm ( 1 1/4" )
Wire OD:       7,0 mm
Pieces/Box:  250

Type of strapping:

GW 105 PES




























1. Technical data
Material Bended steel wire
Wire treatment / rust protection Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface.
2. Required standard
System strength depend on belts used in the system
3. Tested data
System strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 7326909000
Place of Origin China
5. Storage
Shelf Life 12 month*
Condition * when packed in box in dry and dark condition
Long Term Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust.
Standard Container
Items per Carton 1
Cartons per Palette 48
Net weight Carton 21.88 KG
Gross weight Carton 22.33 KG
Dimension Carton 26 x 34 x 20 cm ( 0.01768m³ )
Items on Palette 48
Palette size 105*70*14.5
Total weight per Palette 1044.60 KG
File Name Description File Size Mime Type
SGSnitraBuckles.pdf SGS Report 171432 application/pdf

Login to Download

RoHsNitraBuckles.pdf RoHs Report 276794 application/pdf

Login to Download

REACH138_WIRE BUCKLE.pdf Reach Certificate 290692 application/pdf

Login to Download

SVHC-5S Report Nitrated Buckles.pdf SVHC-5S Report 1017102 application/pdf

Login to Download
