| Product Code | WB16BC3.5/500 |

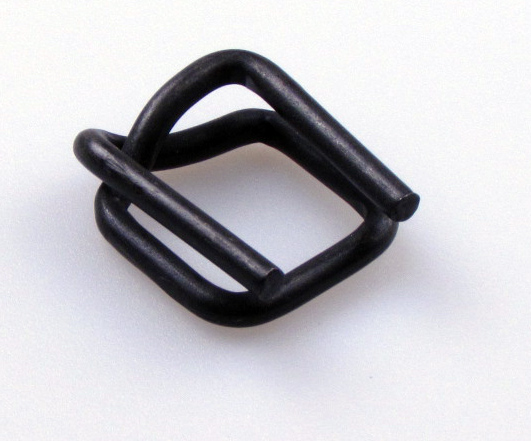

| Product Name | Black Coated Wire Buckle 16mm - WB16 BC 3,5 - Box of 500 pieces |
| Product Size | 16 mm (5/8") |
| Weight | 5.8000 KG |
| MOQ | 144 |
| Custom Tariff No. | |
| GTIN/EAN13 | 4251858250543 |
| Price |
Nitrated Wire Buckles
Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface
Especially design for our HotMelt and Evolution strapping
The nitrated buckles are quite blunt too, but more protective to the belts surface.
They deliver the best in high load performance and easy handling.
In order to maximize holding power, they have outstanding slip resistance due to its
self-lock feature.
Like all our buckles they are fully automated produced in our factory and have an
excellent price / performance ratio.
Width: 16 mm ( 5/8" )
Wire OD: 3,5 mm
Pieces/Box: 1000
| 1. Technical data | |
| Material | Bended steel wire |
| Wire treatment / rust protection | Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface. |
| 2. Required standard | |
| System strength | depend on belts used in the system |
| 3. Tested data | |
| System strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 7326909000 |
| Place of Origin | China |
| 5. Storage | |
| Shelf Life | 12 month* |
| Condition | * when packed in box in dry and dark condition |
| Long Term | Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust. |
| Standard Container | |
| Items per Carton | 1 |
| Cartons per Palette | 144 |
| Net weight Carton | 5.80 KG |
| Gross weight Carton | 6.20 KG |
| Dimension Carton | 34 x 26 x 8 cm ( 0.007072m³ ) |
| Items on Palette | 144 |
| Palette size | 105x70x15 |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSnitraBuckles.pdf | SGS Report | 171432 | application/pdf | |
| RoHsNitraBuckles.pdf | RoHs Report | 276794 | application/pdf | |
| REACH138_WIRE BUCKLE.pdf | Reach Certificate | 290692 | application/pdf | |
| SVHC-5S Report Nitrated Buckles.pdf | SVHC-5S Report | 1017102 | application/pdf |
