| Product Code | 8240304B1 |
| Product Name | Phosphated Wire Buckle 19mm - WB19P 4,3 - Box of 500 pieces |
| Product Size | 19 mm (3/4") |
| Weight | 0.0208 KG |
| MOQ | 96 |
| Custom Tariff No. | 7326208090 |
| GTIN/EAN13 | 4251858251076 |
| Price |

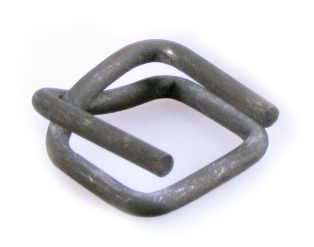

Phosphated Wire Buckles
Phosphate salt is applied and chemically reacts with the surface of the steel
Another special design for our woven strapping
These phosphated wire buckles has also been made in our factory for many years already and
has performed without any problems ever since.
This special coating / treading makes the wire surface more blunt, an effect which is very
useful to prevent the strapping belt from sliding. It also protects the material from wear
and help prevent galling.
Special for our woven PES belts these buckles are in use.
Width: 19 mm ( 3/4" )
Wire OD: 4,3 mm
Pieces/Box: 500
| 1. Technical data | |
| Material | Bended steel wire |
| Wire treatment / rust protection | Phosphate salt is applied and chemically reacts with the surface of the steel |
| 2. Required standard | |
| System strength | depend on belts used in the system |
| 3. Tested data | |
| System strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 7326909000 |
| Place of Origin | China |
| 5. Storage | |
| Shelf Life | 12 month* |
| Condition | * when packed in box in dry and dark condition |
| Long Term | Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust. |
| Standard Container | |
| Items per Carton | 1 |
| Cartons per Palette | 96 |
| Net weight Carton | 10.05 KG |
| Gross weight Carton | 10.45 KG |
| Dimension Carton | 34 x 26 x 13 cm ( 0.011492m³ ) |
| Items on Palette | 96 |
| Palette size | |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSphosBuckles.pdf | SGS Report | 169297 | application/pdf | |
| RoHsPhospBuckles.pdf | RoHs Report | 280406 | application/pdf | |
| REACH138_WIRE BUCKLE.pdf | Reach Certificate | 290692 | application/pdf | |
| SVHC-5S Report Phospated Buckles.pdf | SVHC-5S Report | 1018518 | application/pdf | |
| 2017-SVHC-5 NEW- P buckle.pdf | 2017-SVHC-5 NEW-Report | 608741 | application/pdf |
