| Product Code | 8240103B1 |
| Product Name | Galvanized Wire Buckle 19mm - WB19G 4,0 - Box of 500 pieces |
| Product Size | 19 mm (3/4") |
| Weight | 0.0200 KG |
| MOQ | 96 |
| Custom Tariff No. | 732690 |
| GTIN/EAN13 | 4251858248571 |
| Price |

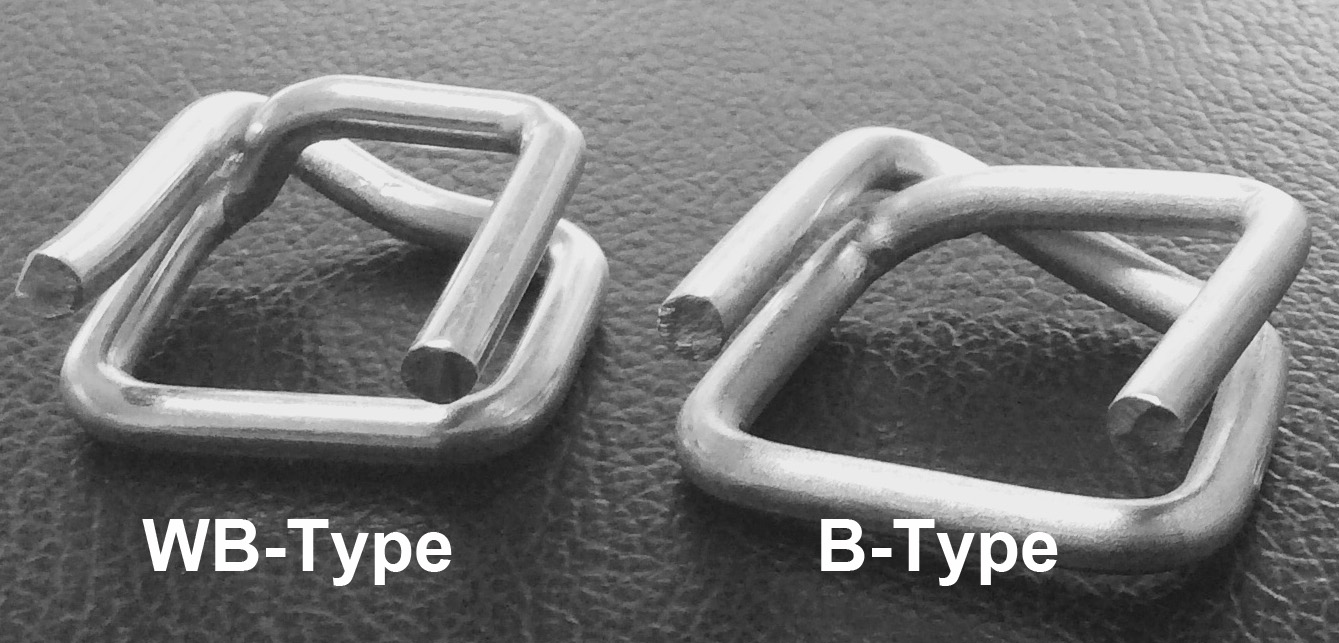

Galvanized Wire Buckles
Galvanization, a process of applying a protective zinc coating to steel to prevent rusting
A special design for our Composite and Hot-Melt strapping
The galvanized wire buckles are protected from corrosion, sea water and other climatic threats.
They are designed for easy threading and deliver the ultimate in high load performance.
They have an outstanding slip resistance due to its self-lock feature in order to maximize holding power.
Width: 19 mm ( 3/4" )
Wire OD: 4,0 mm
Pieces/Box: 500
Type of strapping:
GWL 60 KF
GW 60 KF
GW 65 KF
| 1. Technical data | |
| Material | Bended steel wire |
| Wire treatment / rust protection | Galvanization, a process of applying a protective zinc coating to steel to prevent rusting |
| 2. Required standard | |
| System strength | depend on belts used in the system |
| 3. Tested data | |
| System strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 7326909000 |
| Place of Origin | China |
| 5. Storage | |
| Shelf Life | 12 month* |
| Condition | * when packed in box in dry and dark condition |
| Long Term | Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust. |
| Standard Container | |
| Items per Carton | 1 |
| Cartons per Palette | 96 |
| Net weight Carton | 9.11 KG |
| Gross weight Carton | 9.51 KG |
| Dimension Carton | 26 x 34 x 13 cm ( 0.011492m³ ) |
| Items on Palette | 96 |
| Palette size | 105*70*14.5 |
| Total weight per Palette | 868.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| RoHsGalvaBuckles.pdf | RoHs Report | 289562 | application/pdf | |
| SGSgalvaBuckles.pdf | SGS Report | 170239 | application/pdf | |
| REACH138_WIRE BUCKLE.pdf | Reach Certificate | 290692 | application/pdf | |
| SVHC-5S Report Galvanized Buckles.pdf | SVHC-5S Report | 1007230 | application/pdf |
