| Product Code | G105 CAKE |
| Product Name | Woven Lashing - G105 - 32mm, 2000/3200 daN, 125m roll |
| Product Size | 32 mm (5/4") |
| Weight | 5.1200 KG |
| MOQ | 108 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858217522 |
| Price |

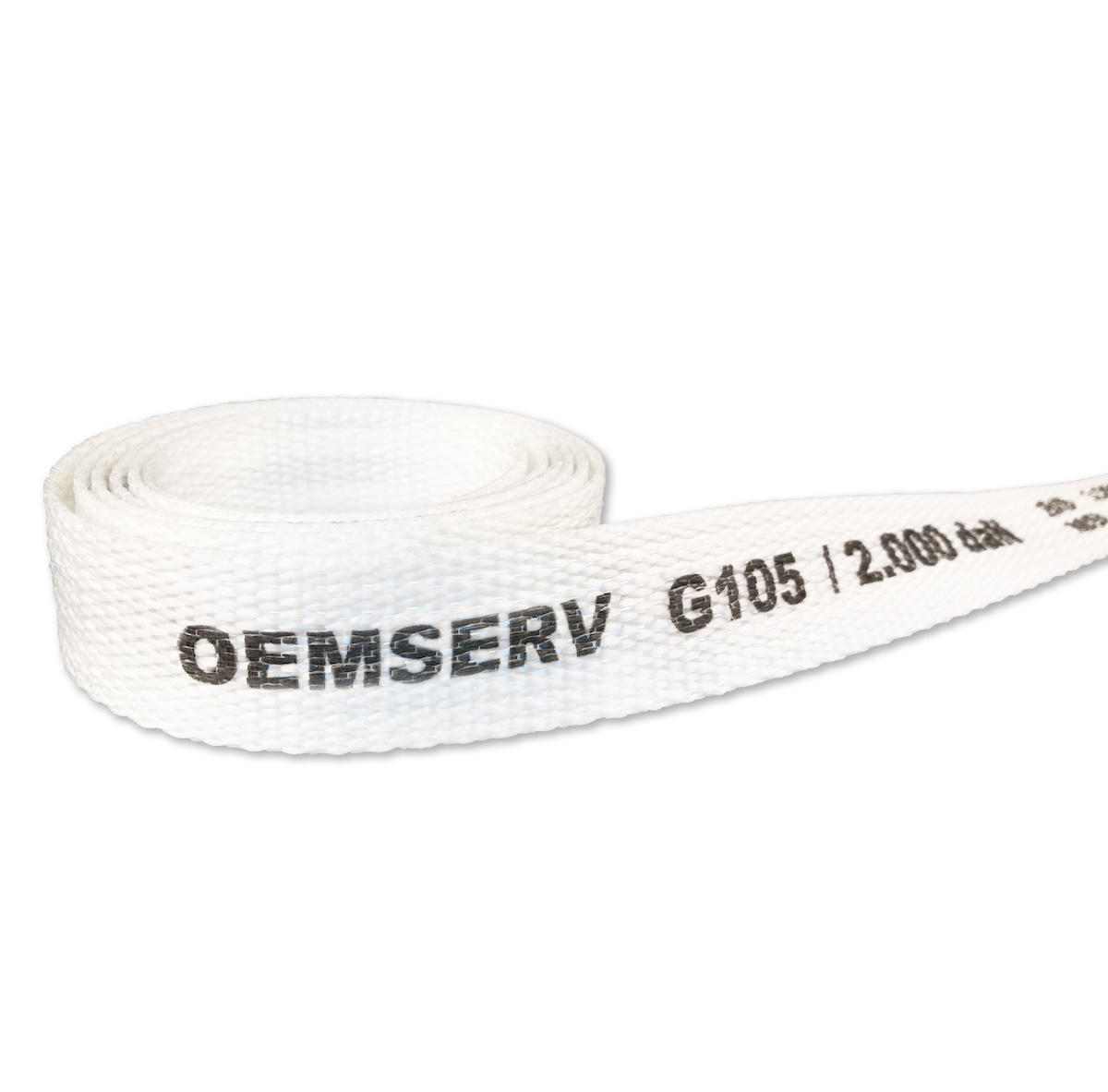

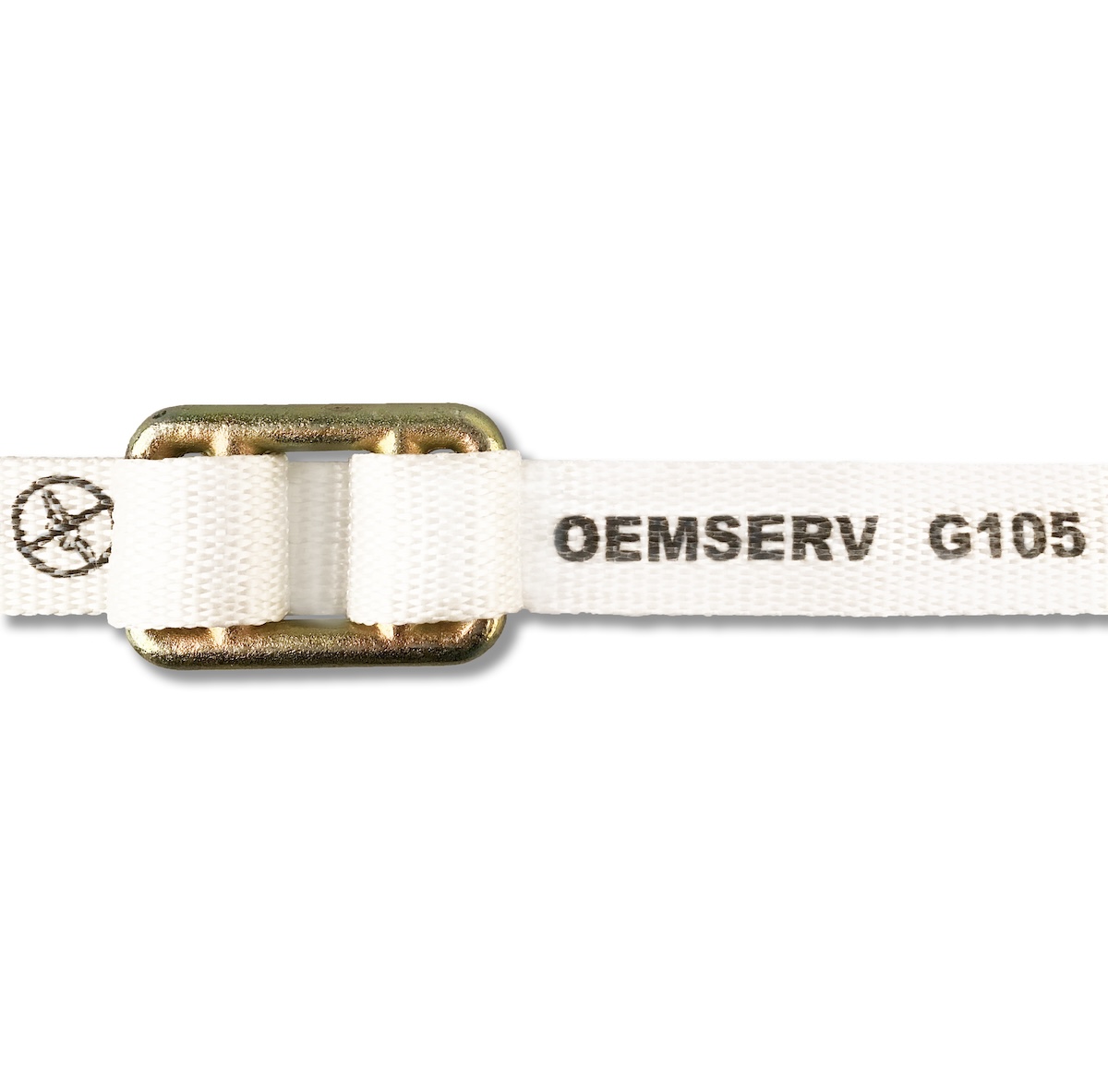

Polyester Woven Lashing
Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear strength | 2000 daN |
| Minimum system strength | ooo daN |
| 3. Tested data | |
| Linear breaking strength | 000 daN |
| System breaking strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 224 |
| Cartons per Palette | 1 |
| Net weight Carton | 1075.20 KG |
| Gross weight Carton | 1075.20 KG |
| Dimension Carton | 0 x 0 x 0 cm ( 0m³ ) |
| Items on Palette | 224 |
| Palette size | 120*80*14.5 |
| Total weight per Palette | 767.68 KG |
| High Cube Container (HQ) | |
| Items per Carton | 272 |
| Cartons per Palette | 1 |
| Net weight Carton | 1305.60 KG |
| Gross weight Carton | 1305.60 KG |
| Dimension Carton | 0 x 0 x 0 cm ( 0m³ ) |
| Items on Palette | 272 |
| Palette size | 120*80*14.5 |
| Total weight per Palette | 767.68 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| RoHsGW75PES.pdf | RoHS Report | 277567 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| GL GW 105 PES + GWS 30.pdf | GL Germanischer Lloyd | 19534 | application/pdf | Download |
