Product Code 8240108
Product Name Galvanized Wire Buckle 25mm - B8S-2560G - Box of 500 pieces
Product Size 25 mm (1")
Weight 27.0000 KG
MOQ 48
Custom Tariff No. 7326909000
GTIN/EAN13 4251858248694
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

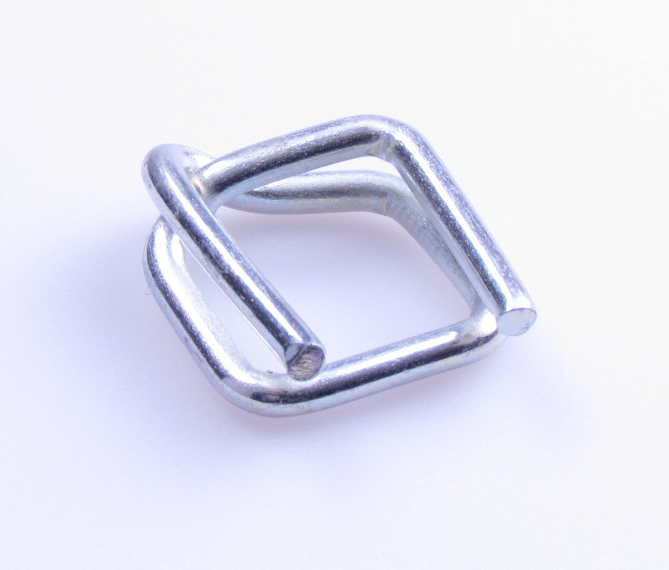

Galvanized Wire Buckles

Galvanization, a process of applying a protective zinc coating to steel to prevent rusting
A special design for our Composite and Hot-Melt strapping

The galvanized wire buckles are protected from corrosion, sea water and other climatic threats.

They are designed for easy threading and deliver the ultimate in high load performance.

They have an outstanding slip resistance due to its self-lock feature in order to maximize holding power.

Width:            25 mm ( 1" )
Wire OD:       5,0 mm
Pieces/Box:  500

Type of strapping:

GW 85 KF
GW 86 KF

1. Technical data
Material Bended steel wire
Wire treatment / rust protection Galvanization, a process of applying a protective zinc coating to steel to prevent rusting
2. Required standard
System strength depend on belts used in the system
3. Tested data
System strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 7326909000
Place of Origin China
5. Storage
Shelf Life 12 month*
Condition * when packed in box in dry and dark condition
Long Term Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust.
Material
Wire Ø 6,0 mm
Standard Container
Items per Carton 1
Cartons per Palette 48
Net weight Carton 27.35 KG
Gross weight Carton 27.67 KG
Dimension Carton 26 x 34 x 25 cm ( 0.0221m³ )
Items on Palette 48
Palette size 120*80*14.5
Total weight per Palette 1336.00 KG
High Cube Container (HQ)
Items per Carton 1
Cartons per Palette 48
Net weight Carton 27.35 KG
Gross weight Carton 27.85 KG
Dimension Carton 26 x 34 x 25 cm ( 0.0221m³ )
Items on Palette 48
Palette size 120*80*14.5
Total weight per Palette 1336.00 KG
File Name Description File Size Mime Type
RoHsGalvaBuckles.pdf RoHs Report 289562 application/pdf

Login to Download

SGSgalvaBuckles.pdf SGS Report 170239 application/pdf

Login to Download

REACH138_WIRE BUCKLE.pdf Reach Certificate 290692 application/pdf

Login to Download

SVHC-5S Report Galvanized Buckles.pdf SVHC-5S Report 1007230 application/pdf

Login to Download
