Product Code K50L
Product Name Composite K50L, 16mm, 285/485 daN, 850m coil
Product Size 16 mm (5/8")
Weight 8.5900 KG
MOQ 90
Custom Tariff No. 3921906000
GTIN/EAN13 4251858214941
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES





Polyester Composite Strapping 16mm

Linear strength min. 285 daN - System strength min. 485 daN *

Polyester Composite belts are specially made for usage on rough environmental materials and sharp edges.  The optimise strength is the perfect base to secure the cargo.  Composite is made of parallel layers of single polyester threads laminated together with polypropylene.
It does not split, is flexible and can be used universally. The core of our composite strapping is made of untwisted polyester yarn. Due to our unique and patented process in manufacturing for untwisted yarn, this strapping achieve higher strength and lower elongation.

The special recipe of our polypropylene coating ensures an optimal compound with the polyester fibres and is at the same time resistant to most chemical solvents, caustics and acids. Due to its high abrasion protection, it is well suited for products with rough surfaces and edges.

Advantages:

- High System Strength
- No damage or scratch on any surface
- No corrosion - no splicing
- Comfortable handling, easy to push under pallets
- Low investment costs  for this small, manageable system
- Retensionable & torsion absorbing
- No risk of injury for shippers and consignees in using or opening the strapping
- Weatherproof (UV radiation)
- Easy disposable

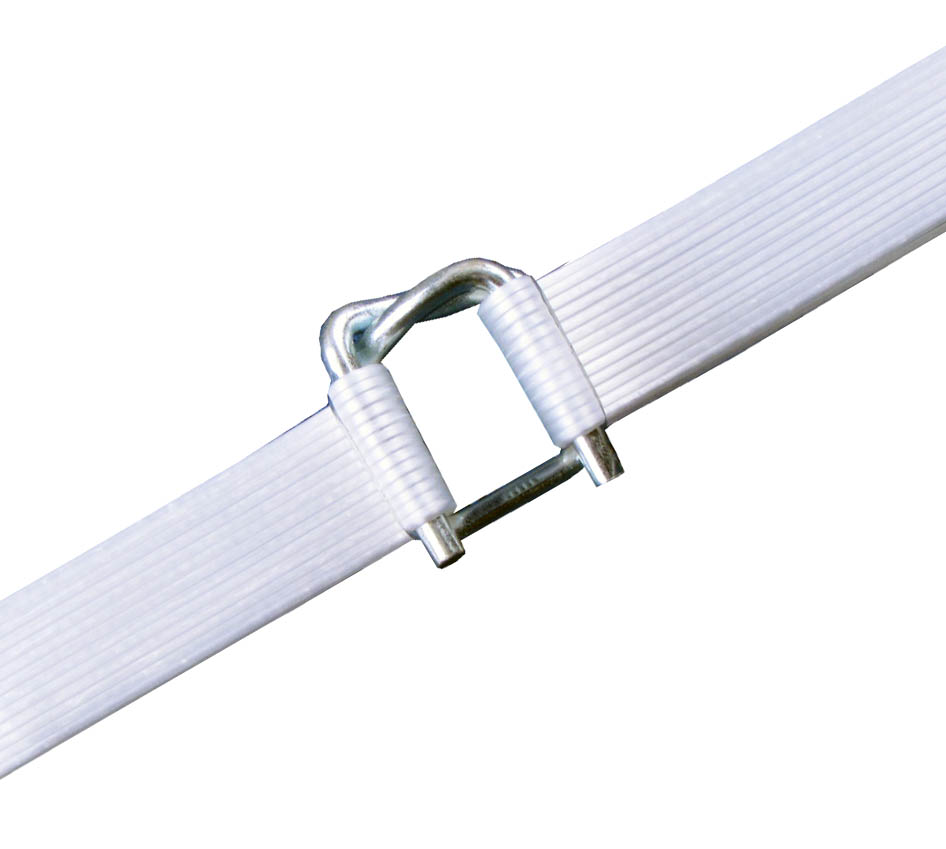

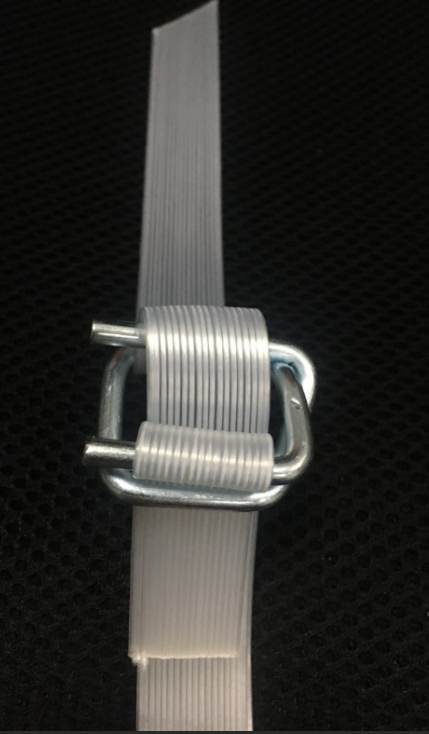

For all our composite belts we recommend using nitrated wire buckles. In several tests, they have performed better than others.

* Note:  linear and breaking strength is tested in a laboratory environment. In open field applications, forces and circumstances may cause different results.

1. Technical data
Material Untwisted high tensile yarns with polypropylene (PP) cover
Paper core dimensions 200 x 190 x 5 mm
2. Required standard
Minimum linear breaking strength 285 daN
Minimum system breaking strength 485 daN
3. Tested data
Linear breaking strength 285 daN
System breaking strength see tested combination(s) below
System breaking strength for K50L+WB16G3.5 485daN Tested August 2021
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of origin China
5. Storage
Shelf live 12 month*
Conditions * when packed in box in dry and dark condition
Long Term Composite strapping will get harder/stiffer over the time, especially when exposed to UV light. But even a 5 year old belt will not loosen strength. The stiffness will make it less comfortable when pulled through the buckle, but the safety performance will NOT be affected.
Standard Container
Items per Carton 2
Cartons per Palette 45
Net weight Carton 17.68 KG
Gross weight Carton 19.38 KG
Dimension Carton 37 x 37 x 40 cm ( 0.05476m³ )
Items on Palette 90
Palette size 1120x1120x145 mm
Total weight per Palette 0.00 KG
