Product Code G44BP
Product Name Woven Strapping Bailing Press - G44BP - 13mm, 500 daN, 300m coil
Product Size 13mm (1/2")
Weight 3.1000 KG
MOQ 288
Custom Tariff No. 5806321000
GTIN/EAN13 4251858214576
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

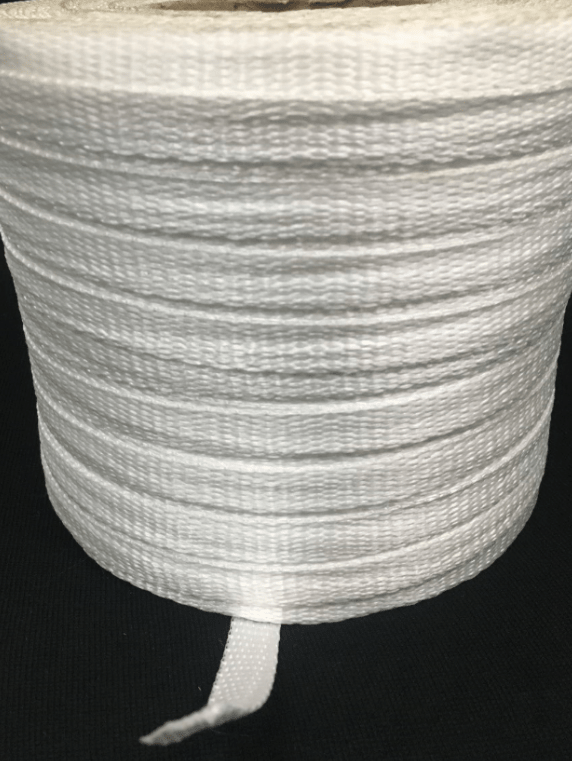

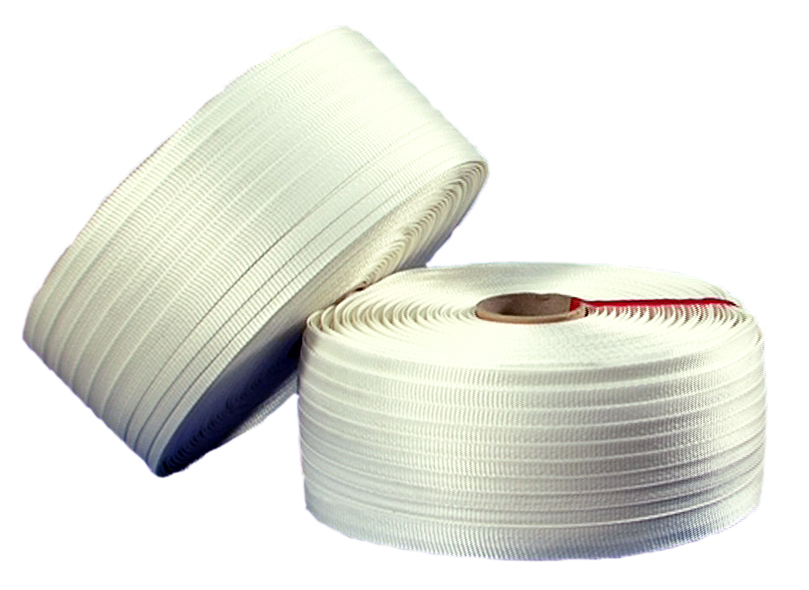

Polyester Woven Strapping 13mm

Glue coated for usage in baling press machines

Woven strapping PES belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore it can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system.
A special glue coating prvents an uncontrolled unwinding from the coil and make this product perfect for the usage in baling press machines.

We provide this woven strapping band with a width of 13 mm and a traction force of 500 daN linear / 800 daN within a system.

OEMSERV's polyester woven belts does don't splice, are flexible and universally applicable.

- no damage to most surfaces
- no corrosion & easy handling
- low investment cost
- high shock absorbtion
- a small, manageable system
- limited resistance against lyes and acids
- no risk of injury for shippers and consignees in using or opening the strapping
- special glue coating for better performance

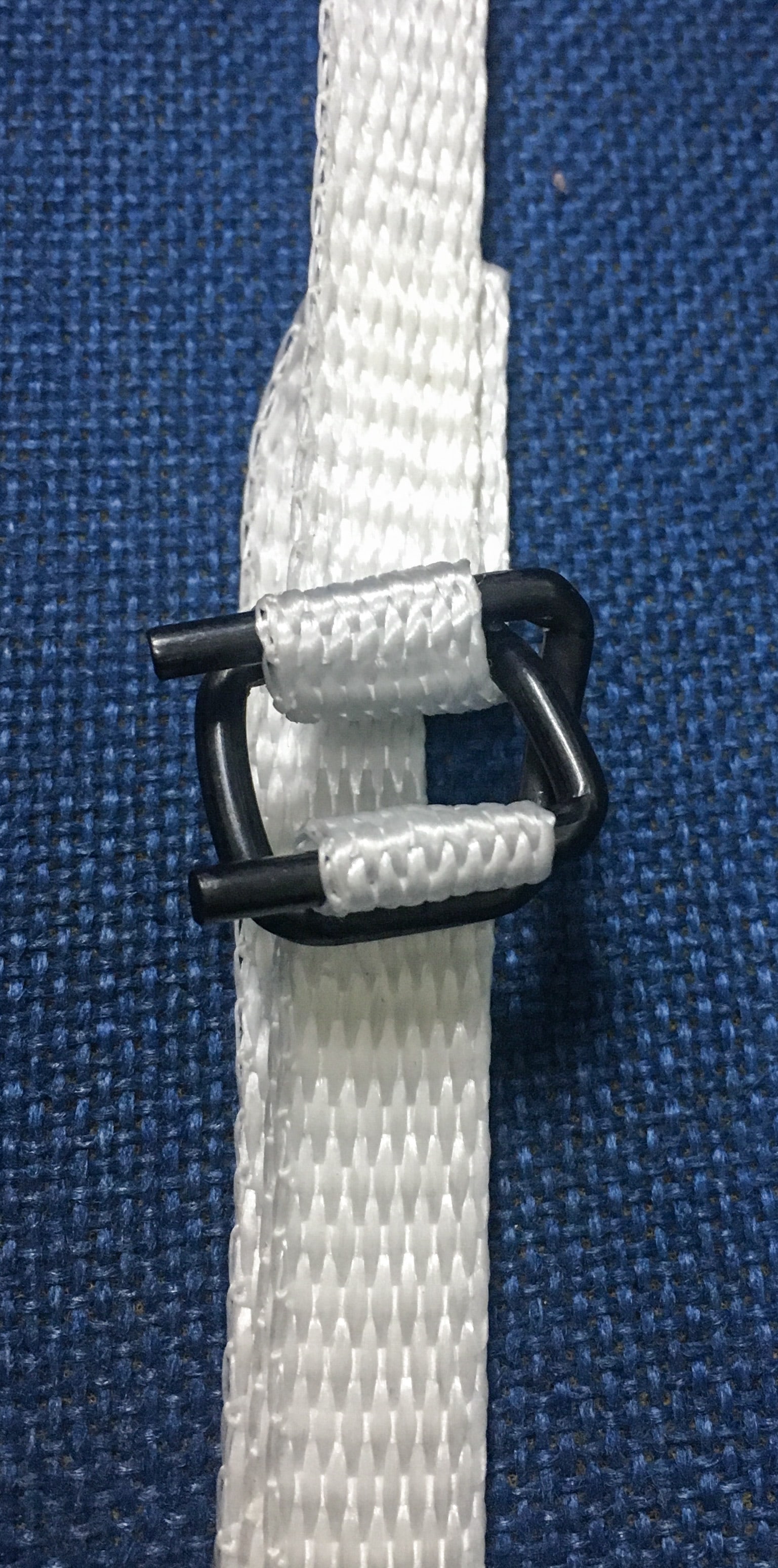

For all our woven polyester strapping belts we recommend to use phosphated wire buckles. In several test they have performed better than others.

* Note:  linear and breaking strength are tested in laboratory environment. In open field applications forces and circumstances may cause different results.

1. Technical data
Material High tensile polyester yarns, woven
Material processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear breaking strength 500 daN
Minimum system breaking strength Doesn't apply for this product
3. Tested data
Linear breaking strength 000 daN
System breaking strength see tested combination(s) below

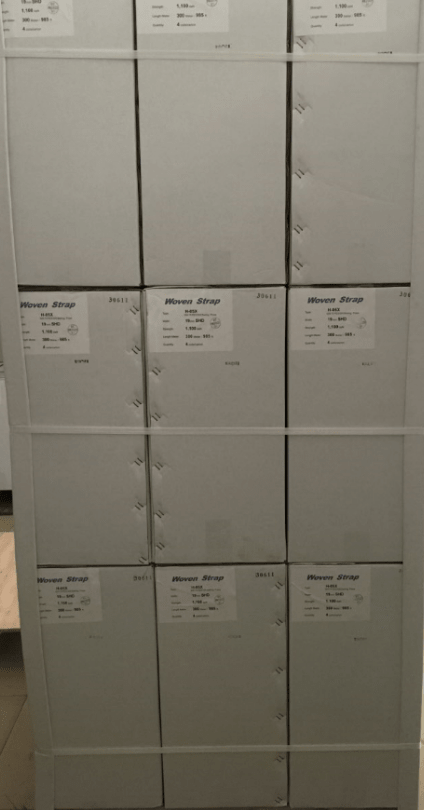

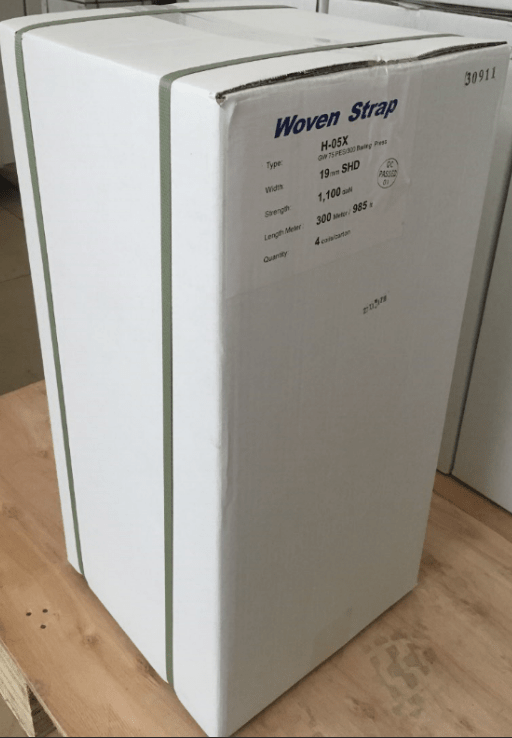

4. Shipping
Custom Statistic code Tarif Number 5806321000
Place of Origin China
Standard Container
Items per Carton 8
Cartons per Palette 36
Net weight Carton 24.56 KG
Gross weight Carton 25.36 KG
Dimension Carton 38 x 38 x 33 cm ( 0.047652m³ )
Items on Palette 288
Palette size 120*80*14.5
Total weight per Palette 959.20 KG
High Cube Container (HQ)
Items per Carton 8
Cartons per Palette 36
Net weight Carton 24.56 KG
Gross weight Carton 25.36 KG
Dimension Carton 38 x 38 x 33 cm ( 0.047652m³ )
Items on Palette 288
Palette size 120*80*14.5
Total weight per Palette 959.20 KG
