Product Code G66 1RE
Product Name Woven Strapping - G66 1RM, 19MM, 750/1200 DAN, 800M COIL, 1 RED LINE IN THE MIDDLE
Product Size 19 mm (3/4")
Weight 11.0400 KG
MOQ 108
Custom Tariff No. 5806321000
GTIN/EAN13 EAN13 is valid.
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

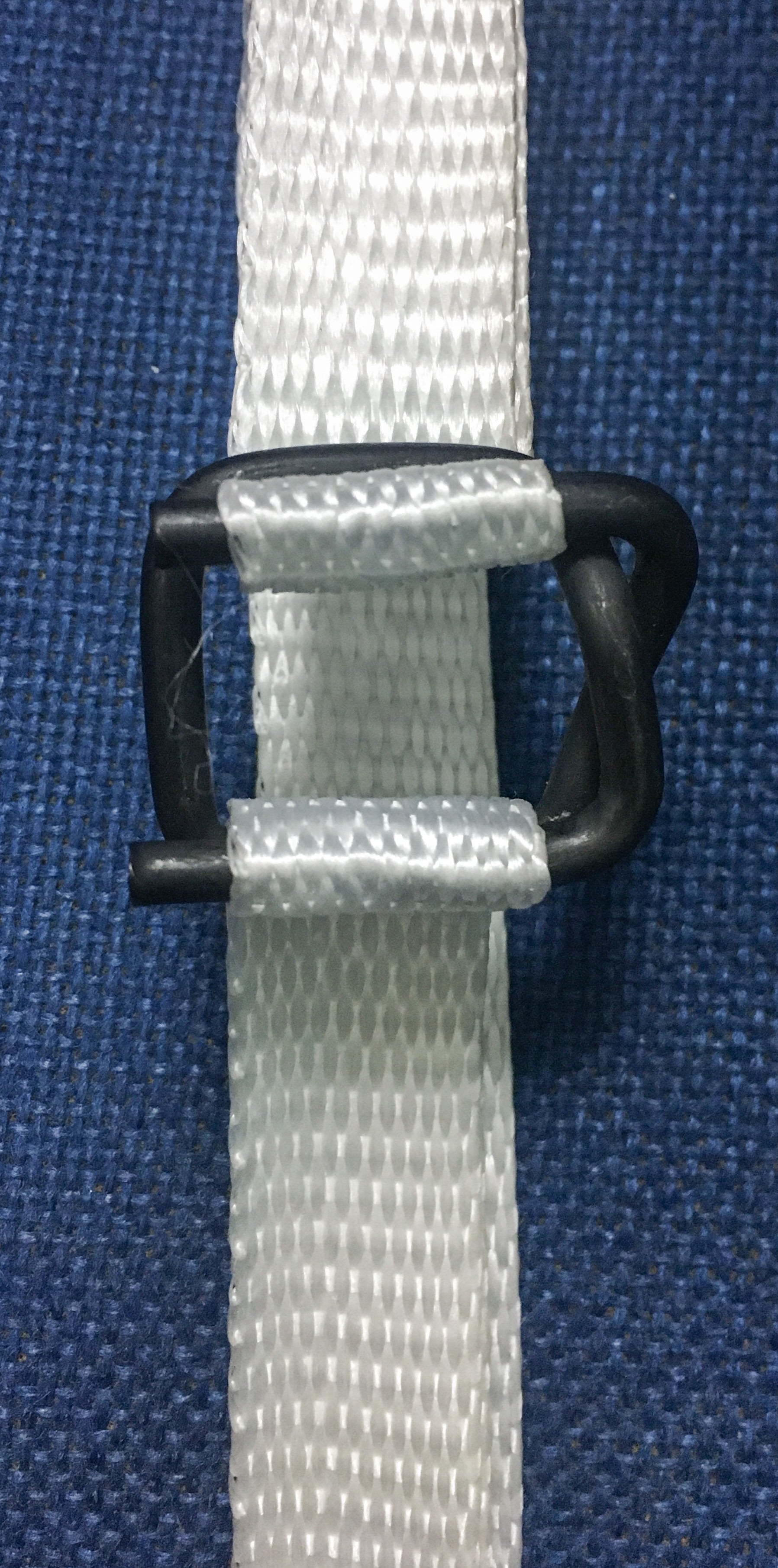

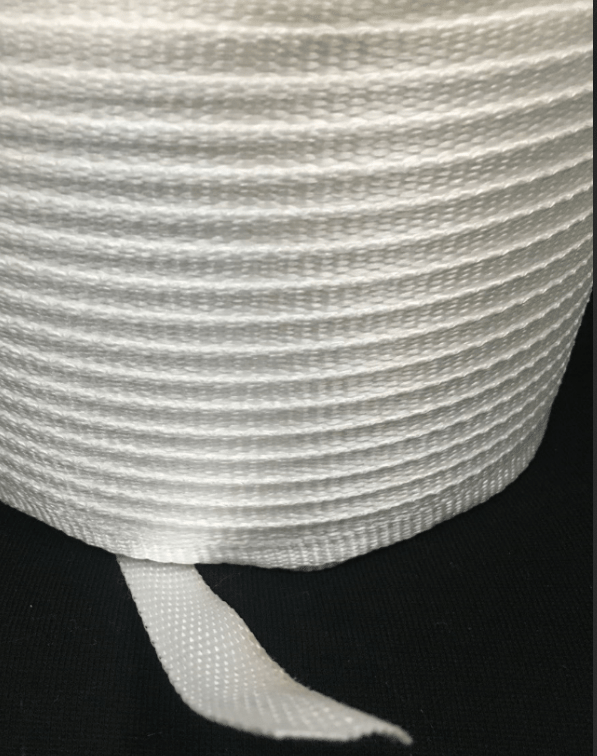

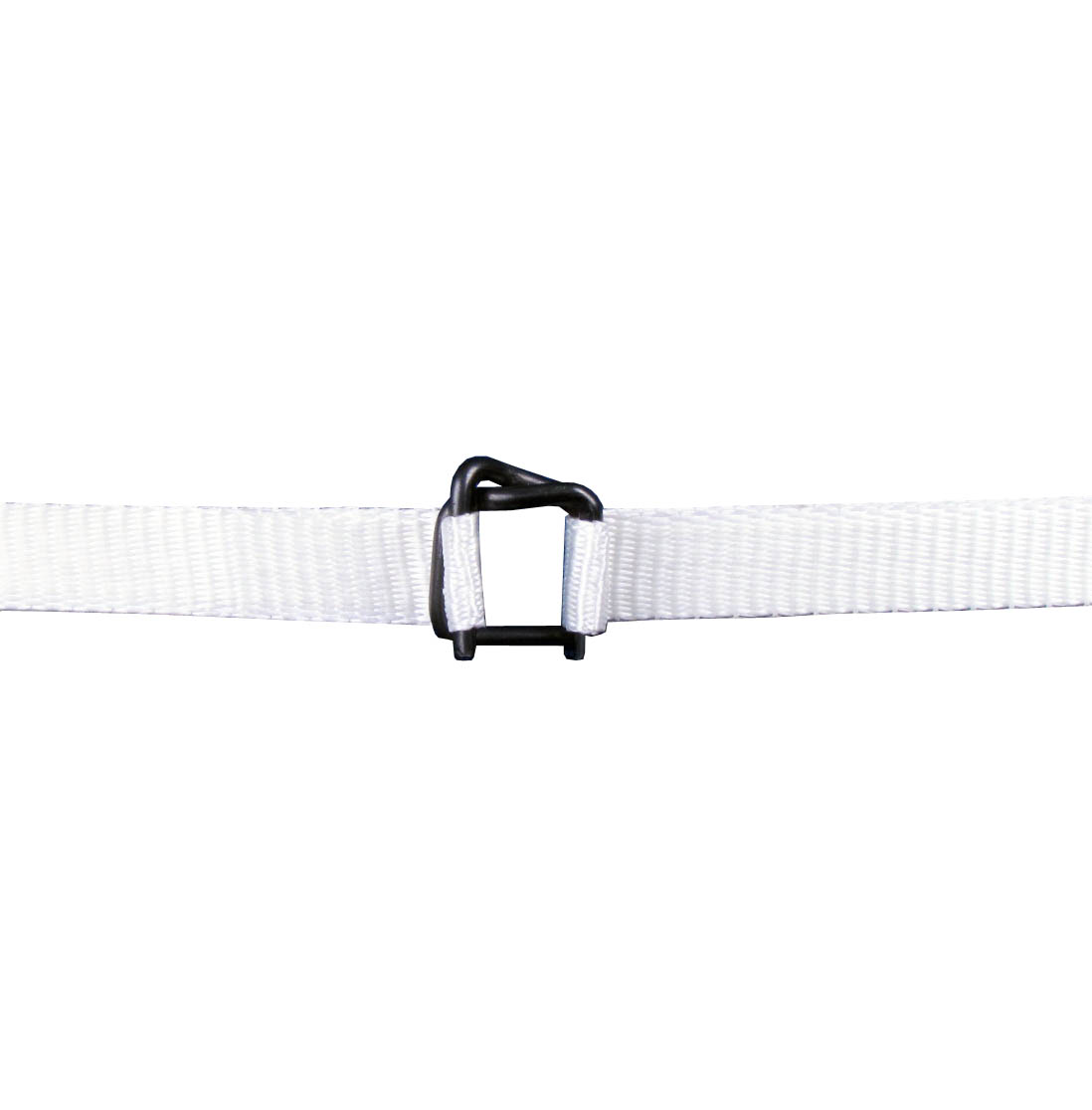

Polyester Woven Strapping

Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 13mm to 25mm
  • linear breaking strength available from 295 to 1500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating
1. Technical data
Material High tensile polyester yarns, woven
Material processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear breaking strength 750 daN
Minimum system breaking strength 1200 daN
3. Tested data
Linear breaking strength 000 daN
System breaking strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 5806321000
Place of Origin China

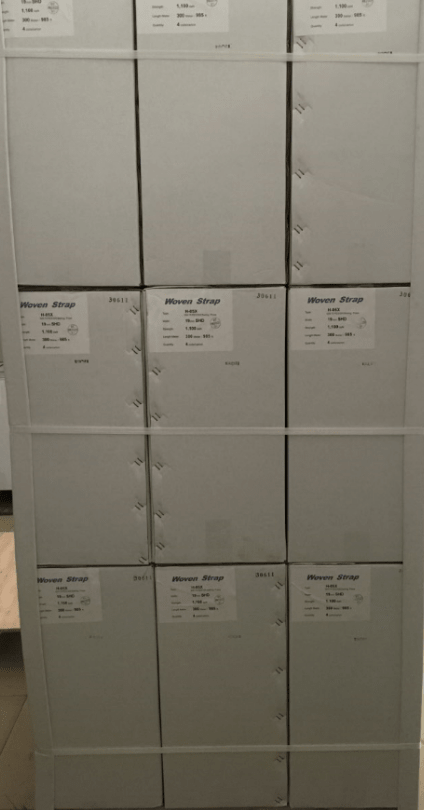

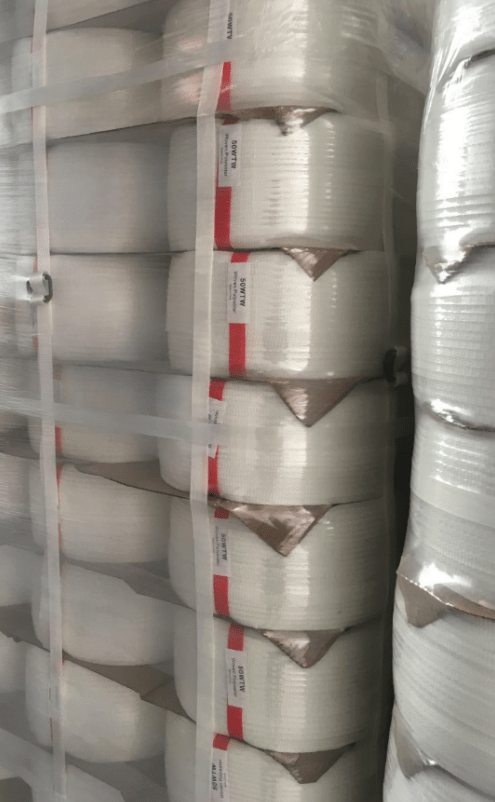

Standard Container

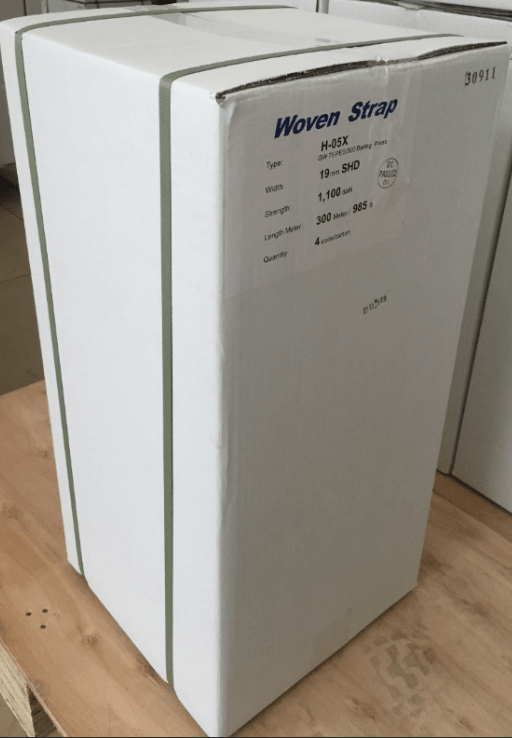

Items per Carton 2
Cartons per Palette 108
Net weight Carton 21.80 KG
Gross weight Carton 23.20 KG
Dimension Carton 40 x 40 x 32 cm ( 0.0512m³ )
Items on Palette 216
Palette size 120*120*14.5
Total weight per Palette 1330.12 KG
File Name Description File Size Mime Type
Woven Strap TUV report 2013.pdf Woven Strap TUV report 1423135 application/pdf

Login to Download

RoHSGW60PES.pdf RoHs Report 255694 application/pdf

Login to Download

SGSwovenBelts.pdf SGS Report 187370 application/pdf

Login to Download

REACH138_WOVEN STRAP.pdf Reach Certificate 293427 application/pdf

Login to Download

SVHC-5S Report Woven Strap.pdf SVHC-5S Report 1000154 application/pdf

Login to Download

2017-SVHC-5 NEW-woven strap.pdf 2017-SVHC-5 NEW-Report 605518 application/pdf

Login to Download
