| Product Code | G300 |
| Product Name | Woven Lashing - G300 - 50mm, 2000/3200 daN, 100m coil |
| Product Size | 50 mm (2") |
| Weight | 3.8000 KG |
| MOQ | 176 |
| Custom Tariff No. | 5806321000 |
| GTIN/EAN13 | 4251858216167 |
| Price |

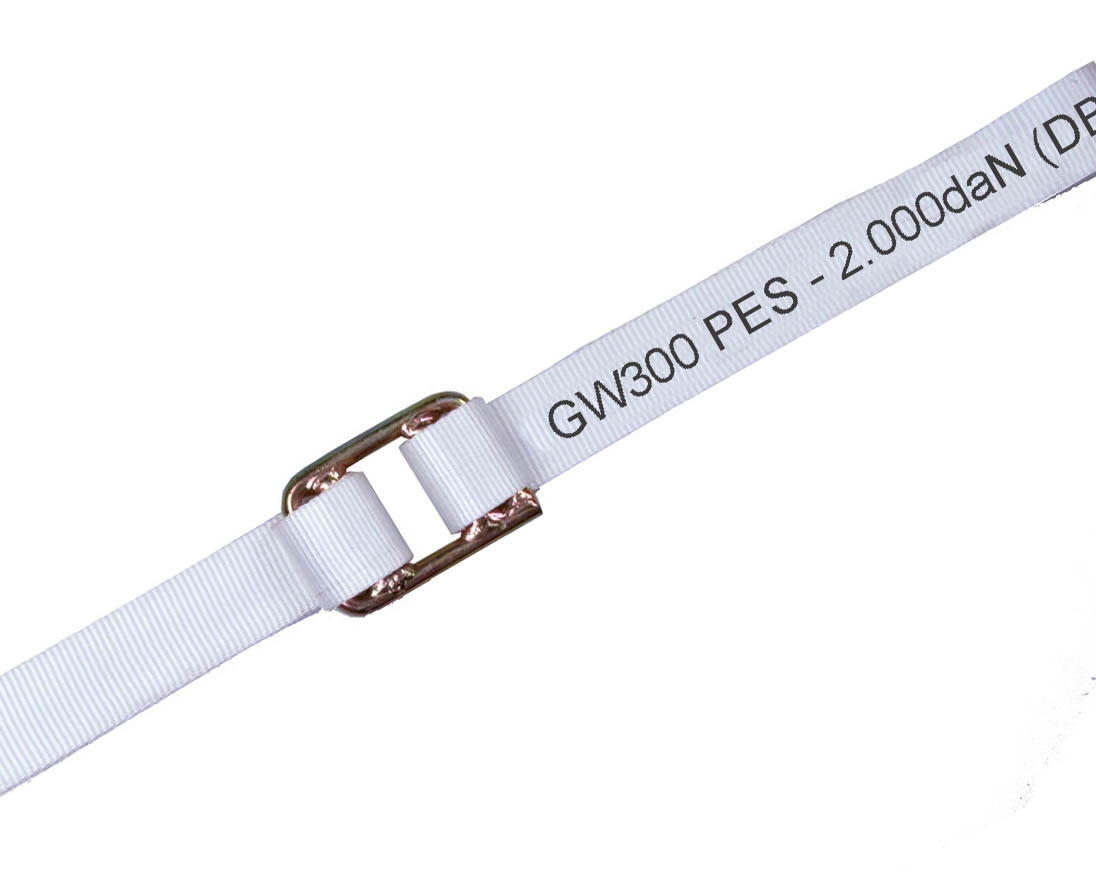

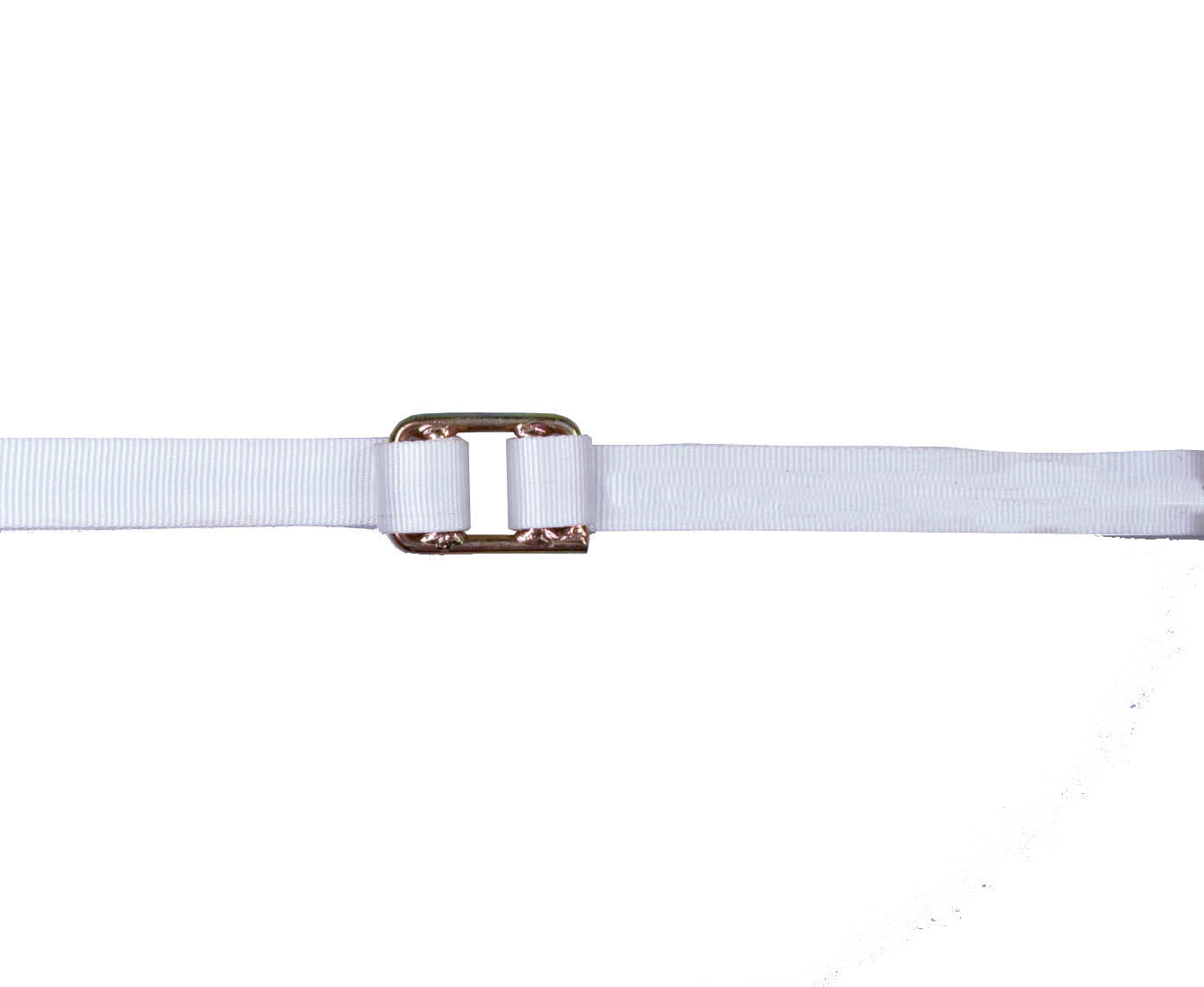

Polyester Woven Lashing
Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear strength | 2000 daN |
| Minimum system strength | 3200 daN |
| 3. Tested data | |
| Linear breaking strength | 2000 daN |
| System breaking strength | see tested combination(s) below |
| System breaking strength+GWS50L | Test 1-3 ( 3775, 3644, 3739 ) Avg 3719 daN tested Jul 2017 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 4 |
| Cartons per Palette | 44 |
| Net weight Carton | 15.68 KG |
| Gross weight Carton | 15.73 KG |
| Dimension Carton | 50 x 50 x 17 cm ( 0.0425m³ ) |
| Items on Palette | 176 |
| Palette size | 1050x1050x145m |
| Total weight per Palette | 765.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| RoHsGW75PES.pdf | RoHS Report | 277567 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| GL GW 300 PES + GWS 50 L.pdf | German Lloyd Certificate | 20148 | application/pdf | |
| GL GW 300 PES + GWS 50.pdf | German Lloyd Certificate | 20151 | application/pdf | |
| Test_report_for_G300+GSW50L.pdf | G300 test report Jul 2017 | 258302 | application/pdf |
