| Product Code | G105 dispenser |

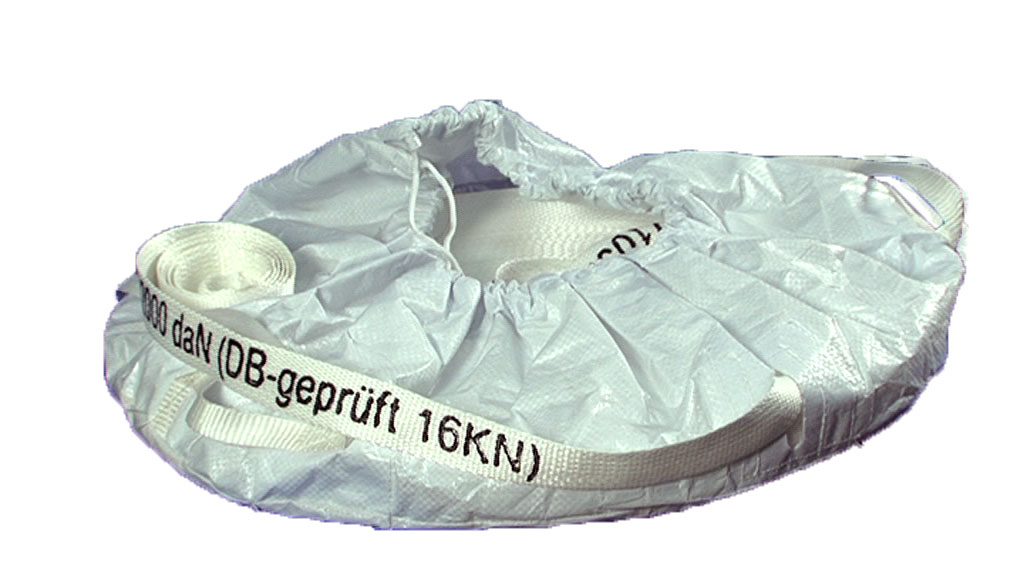

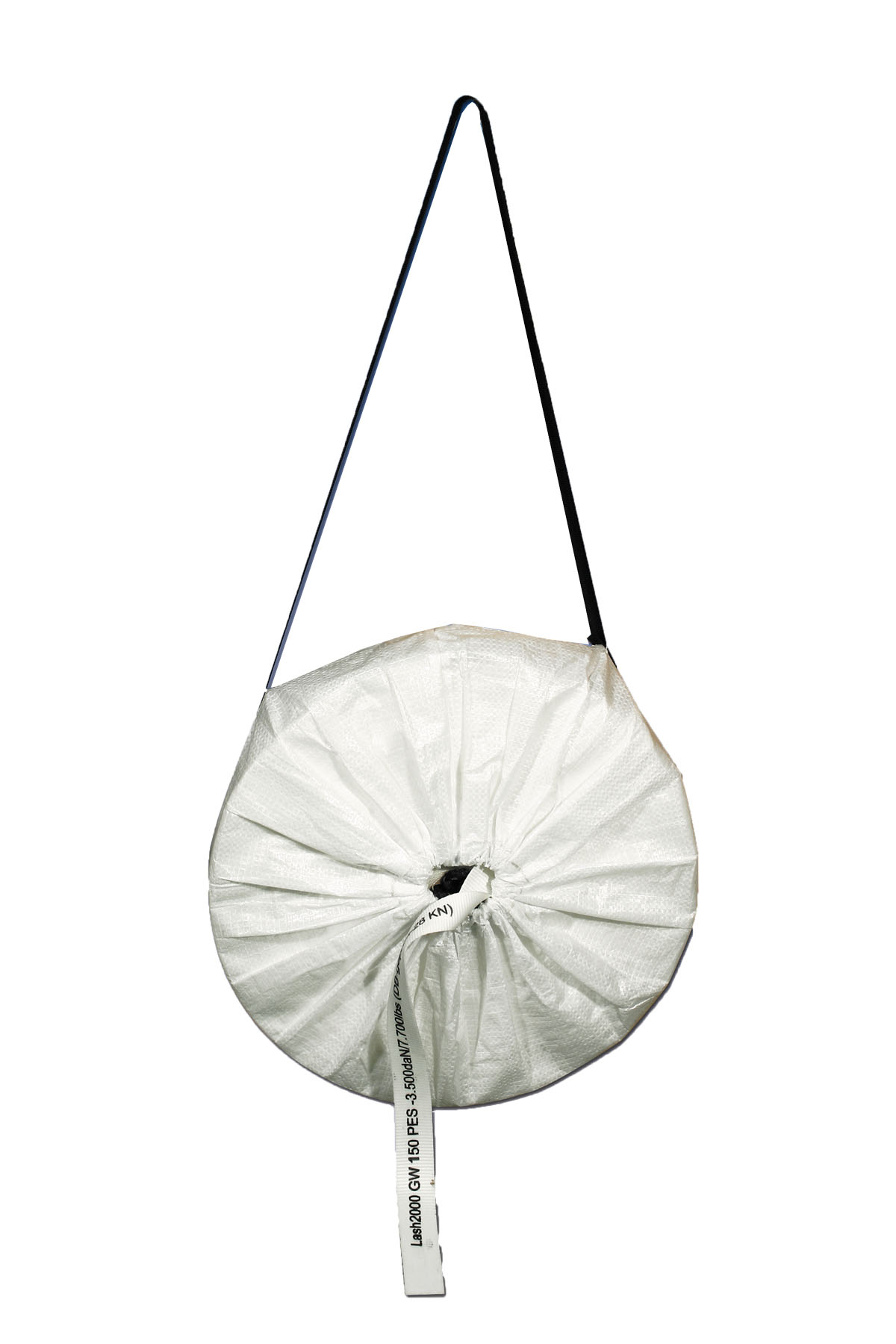

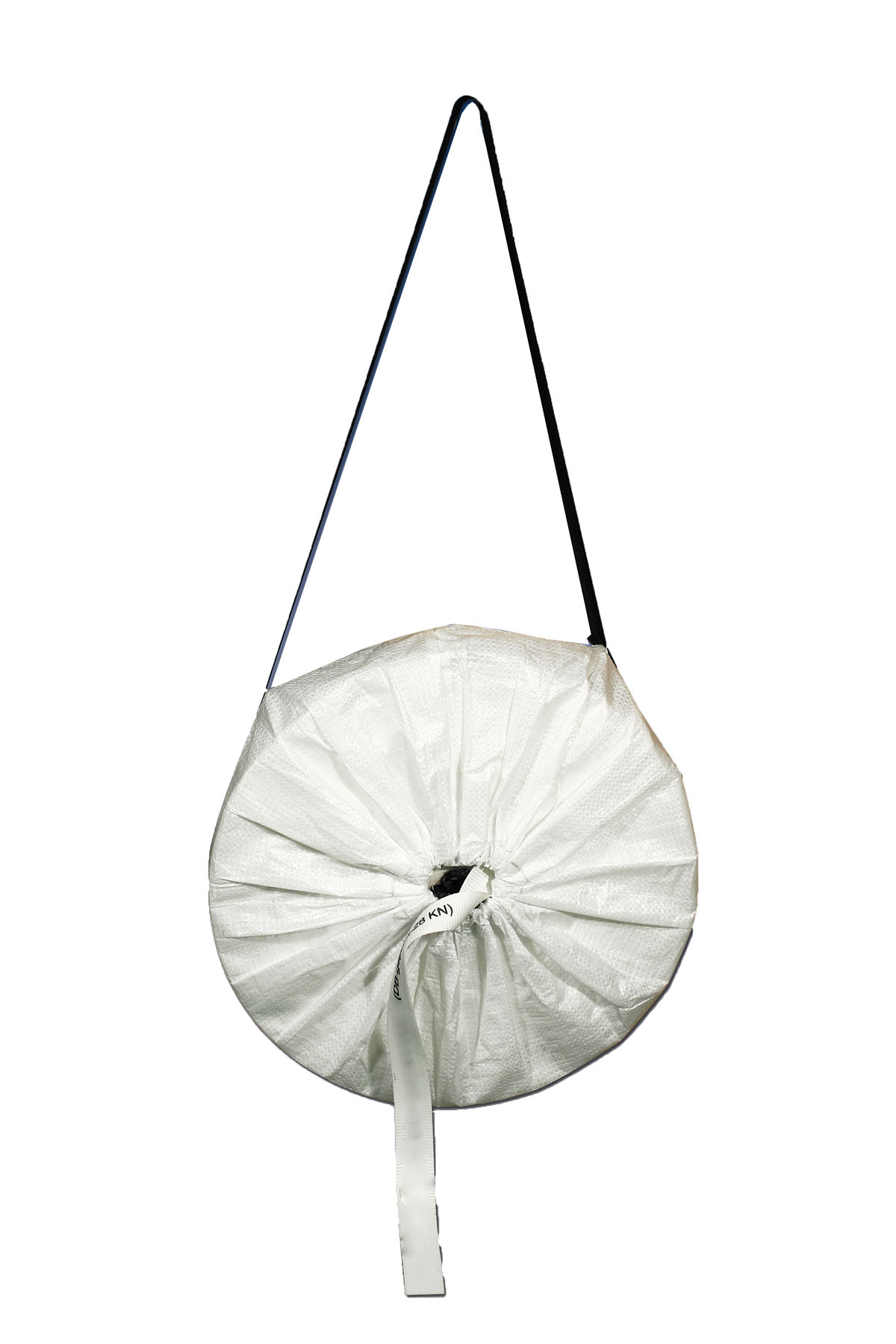

| Product Name | Woven Lashing - G105 - 32mm, 2000/3200 daN, 2x 125m coils in one dispenser bag |
| Product Size | F. 32mm (5/4") |
| Weight | 10.4000 KG |
| MOQ | 96 |
| Custom Tariff No. | 5806321000 |
| GTIN/EAN13 | 4251858217553 |
| Price |

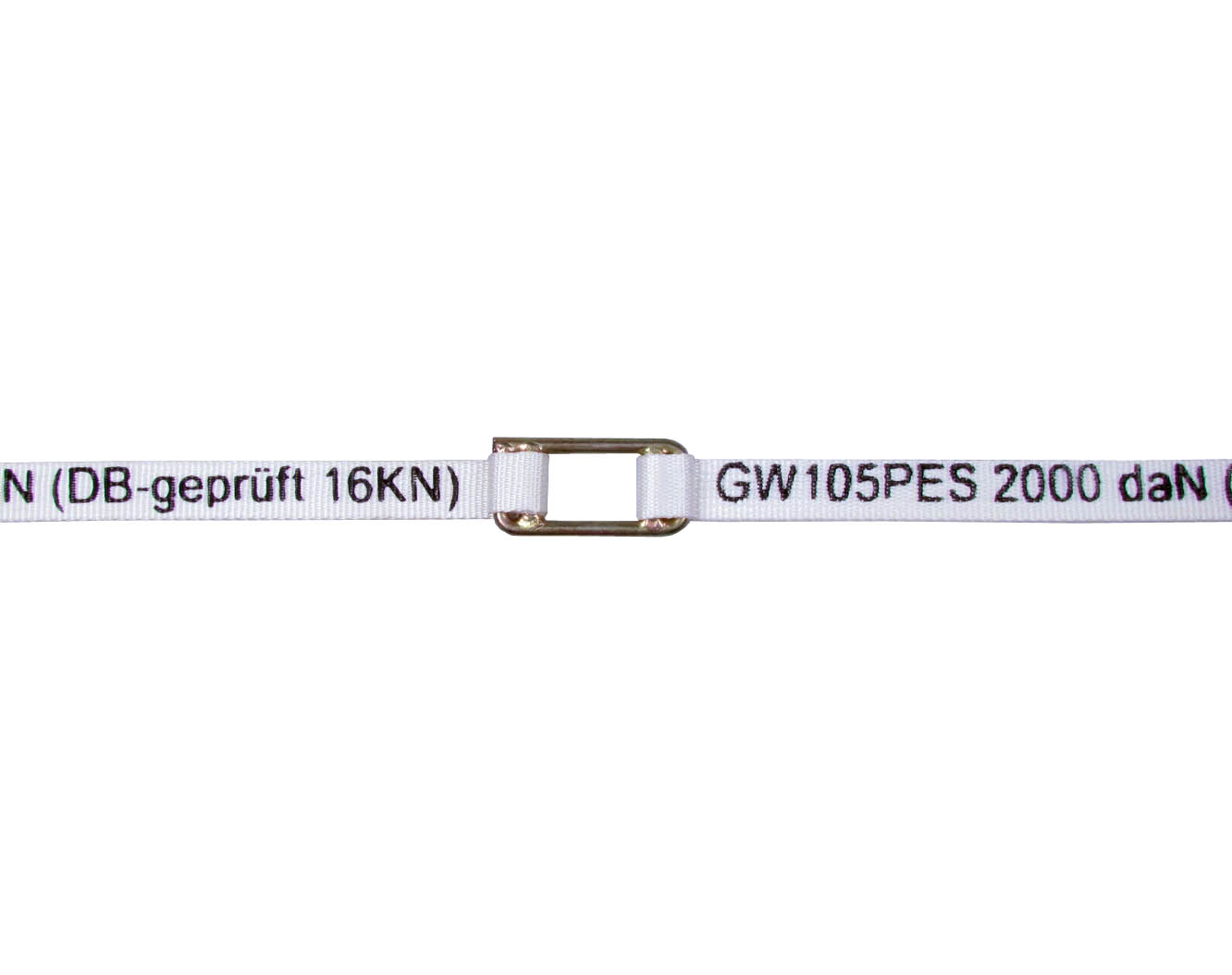

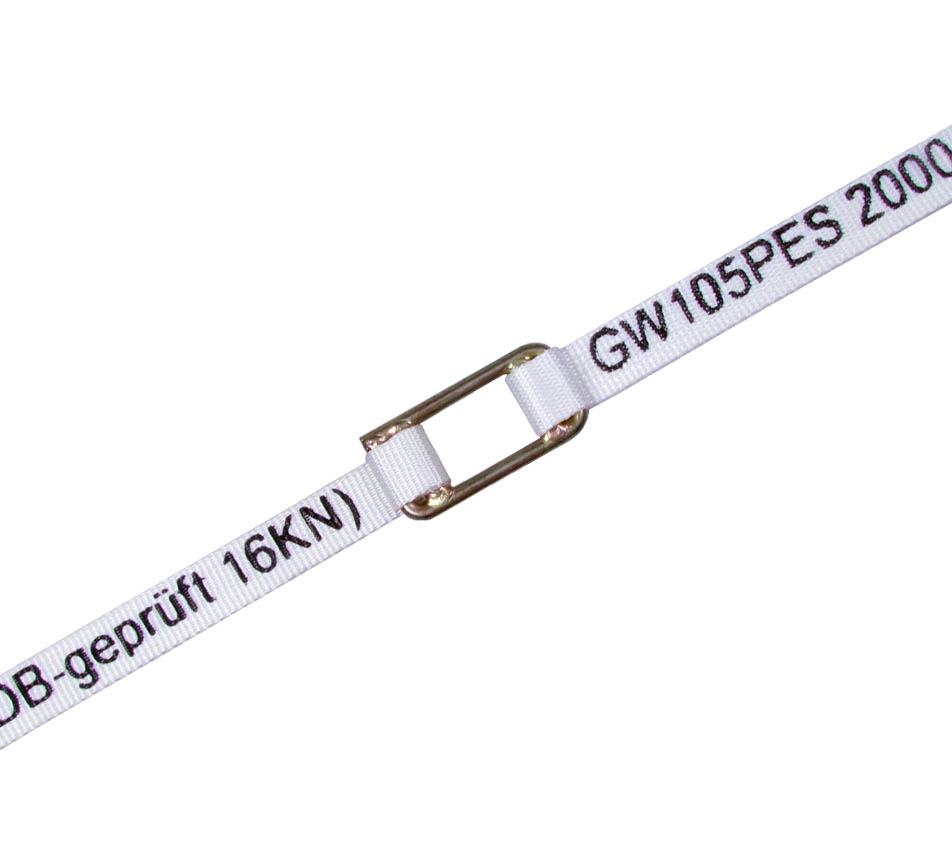

Polyester Woven Lashing
Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear strength | 2000 daN |
| Minimum system strength | 3200 daN |
| 3. Tested data | |
| Linear breaking strength | 000 daN |
| System breaking strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 2 |
| Cartons per Palette | 48 |
| Net weight Carton | 19.98 KG |
| Gross weight Carton | 21.08 KG |
| Dimension Carton | 54 x 54 x 16 cm ( 0.046656m³ ) |
| Items on Palette | 96 |
| Palette size | 112x112x14.5 |
| Total weight per Palette | 0.00 KG |
| High Cube Container (HQ) | |
| Items per Carton | 2 |
| Cartons per Palette | 48 |
| Net weight Carton | 19.98 KG |
| Gross weight Carton | 21.08 KG |
| Dimension Carton | 54 x 54 x 16 cm ( 0.046656m³ ) |
| Items on Palette | 96 |
| Palette size | 112x112x14.5 |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| RoHsGW75PES.pdf | RoHS Report | 277567 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| GL GW 105 PES + BF 8 FS.pdf | 19508 | application/pdf | Download | |
| GL GW 105 PES + GWS 30.pdf | 19534 | application/pdf | Download | |
| GL GW 105 PES + WLS 35.pdf | 20059 | application/pdf | Download |
