| Product Code | G74 |
| Product Name | Woven Strapping - G74 - 19mm, 830/1170 daN, 500m coil |
| Product Size | 19 mm (3/4") |
| Weight | 7.2500 KG |
| MOQ | 108 |
| Custom Tariff No. | 5806321000 |
| GTIN/EAN13 | 4251858211025 |
| Price |

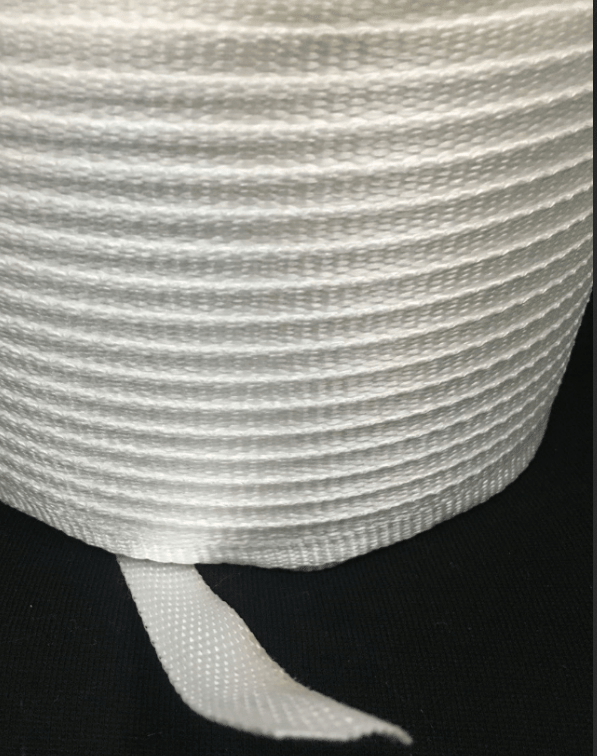

Polyester Woven Strapping
Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 830 daN |
| Minimum system breaking strength | 1170 daN |
| 3. Tested data | |
| Linear breaking strength | Test 1-5 (869, 848, 857, 837,872 ) Avg 857 daN tested Nov 2017 |
| System breaking strength | see tested combination(s) below |

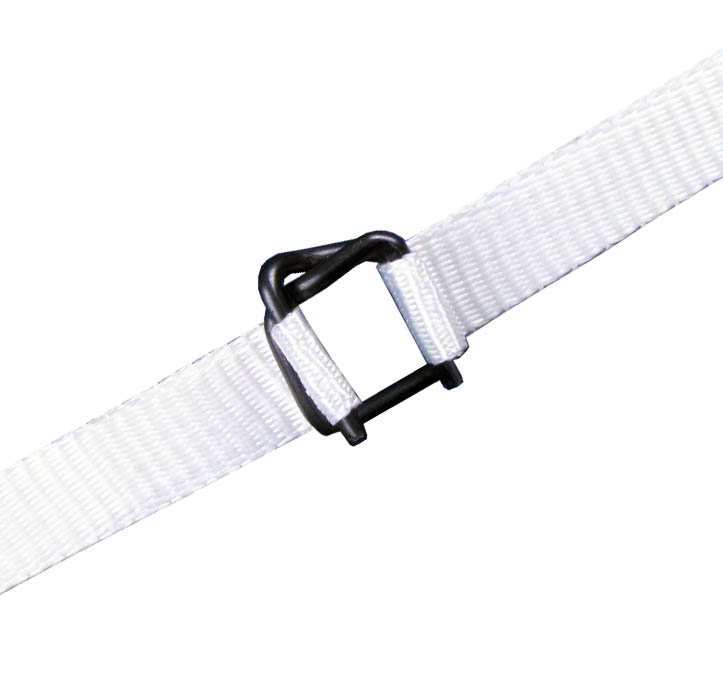

| System breaking strength+WB19P4.3 | Test 1-5 (1183, 1180, 1218, 1163, 1201 ) Avg 1189 daN tested Nov 2017 |
| System breaking strength+WB19N4.3 | Test 1-5 (1185, 1175, 1273, 1155, 1223) Avg 1202 daN tested June 2017 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 21.87 KG |
| Gross weight Carton | 23.37 KG |
| Dimension Carton | 35 x 35 x 47 cm ( 0.057575m³ ) |
| Items on Palette | 108 |
| Palette size | 105*105*14.5 |
| Total weight per Palette | 837.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
| RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| Test_report_for_G74.pdf | G74 test report Nov/june 2017 | 237619 | application/pdf |
