| Product Code | G65 |
| Product Name | Woven Strapping - G65 - 19mm, 750/1100 daN, 500m coil |
| Product Size | 19 mm (3/4") |
| Weight | 6.6900 KG |
| MOQ | 108 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858211001 |
| Price |

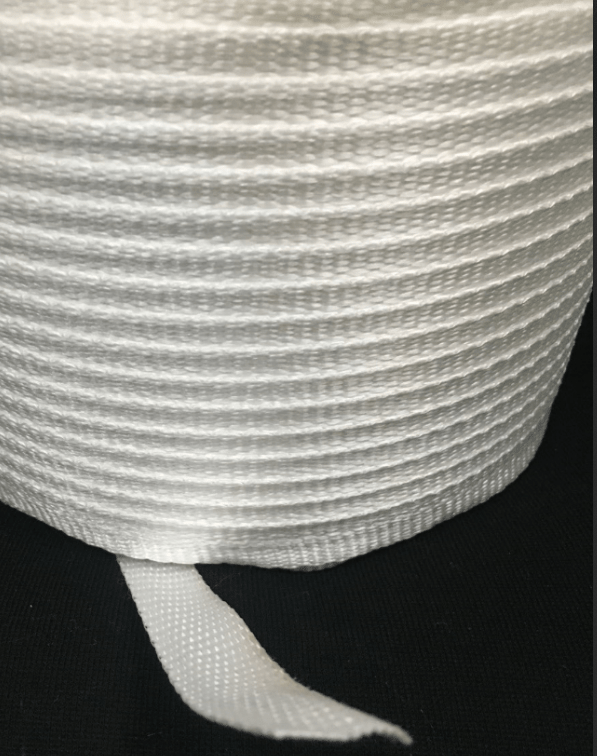

Polyester Woven Strapping
Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 750 daN |
| Minimum system breaking strength | 1200 daN |
| 3. Tested data | |
| Linear breaking strength | Test 1-5 (801, 786, 797, 792, 789) Avg 793 daN Tested Oct 2017 |
| System breaking strength | see tested combination(s) below |
| System breaking strength+WB19P4.3 | Test 1-5 (1100, 1122, 1112, 1148, 1131) Avg 1123 daN Tested Oct 2017 |
| System breaking strength+FB19 | Test 1-5 (1331, 1284, 1317, 1284, 1310) Avg 1305 daN Tested June 2017 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 20.64 KG |
| Gross weight Carton | 21.94 KG |
| Dimension Carton | 35 x 35 x 50 cm ( 0.06125m³ ) |
| Items on Palette | 108 |
| Palette size | 105*105*14.5 |
| Total weight per Palette | 775.98 KG |
| High Cube Container (HQ) | |
| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 20.64 KG |
| Gross weight Carton | 21.94 KG |
| Dimension Carton | 35 x 35 x 47 cm ( 0.057575m³ ) |
| Items on Palette | 108 |
| Palette size | 105*105*14.5 |
| Total weight per Palette | 775.98 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
| RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| Test_report_for_G65.pdf | G65 Test report Oct/June 2017 | 228490 | application/pdf |
