Product Code G50

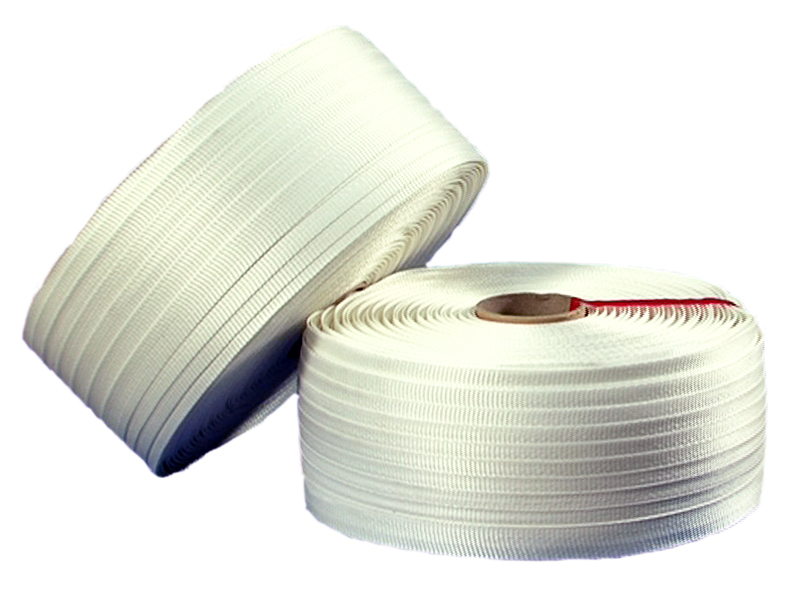

Product Name Woven Strapping - G50 - 16mm, 450/720 daN, 850m coil
Product Size 16 mm (5/8")
Weight 7.4200 KG
MOQ 108
Custom Tariff No. 560750
GTIN/EAN13 4251858210899
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

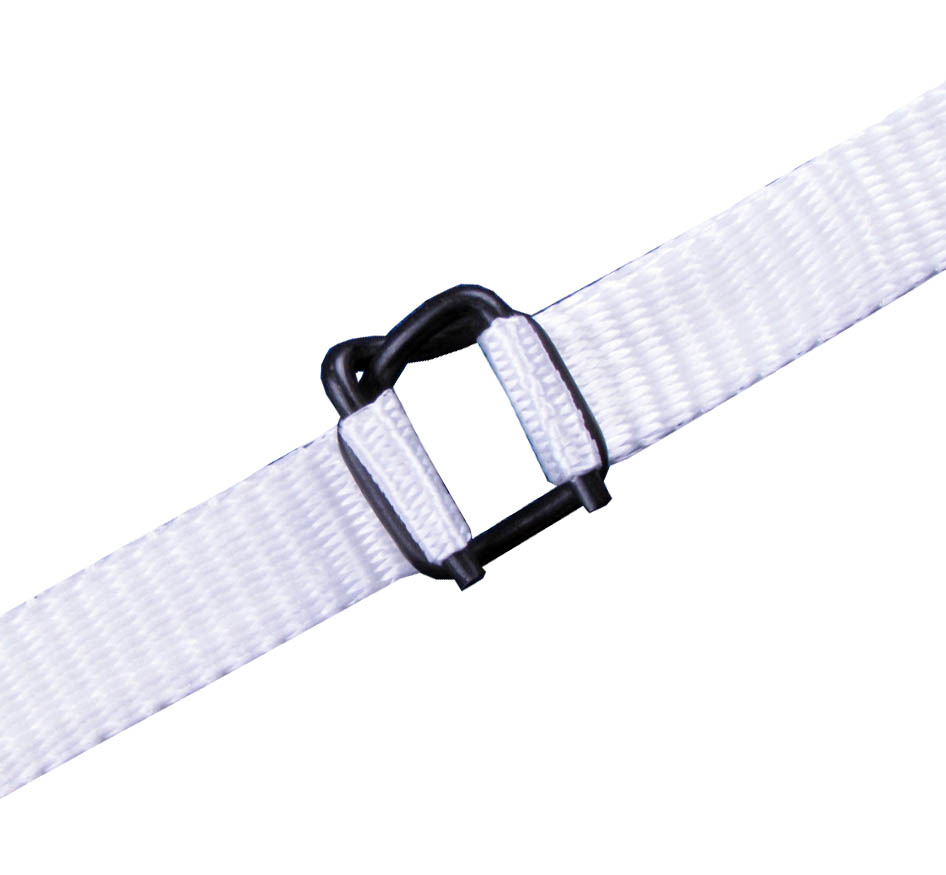

Polyester Woven Strapping

Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 13mm to 25mm
  • linear breaking strength available from 295 to 1500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating



1. Technical data
Material High tensile polyester yarns, woven
Material processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear breaking strength 450 daN
Minimum system breaking strength 700 daN
3. Tested data
Linear breaking strength Test 1-5 (475, 483, 485, 488, 480 ) Avg 482 daN tested Nov 2017
System breaking strength see tested combination(s) below

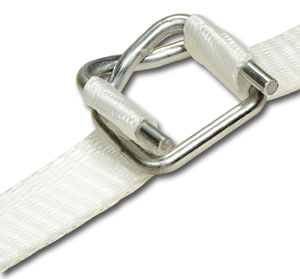

System breaking strength+WB16N3.5 Test 1-5 (701, 700, 702, 700, 702 ) Avg 701 daN tested Sep 2017
System breaking strength+WB16N3.8 Test 1-5 (705, 717, 725, 722, 715 ) Avg 717 daN tested Nov 2017
System breaking strength+WB16P3.8 Test 1-5 (733, 704, 740, 776, 725 ) Avg 736 daN tested Nov 2017
4. Shipping
Custom Statistic code Tarif Number 5806321000
Place of Origin China
Standard Container
Items per Carton 3
Cartons per Palette 36
Net weight Carton 21.99 KG
Gross weight Carton 23.29 KG
Dimension Carton 35 x 35 x 47 cm ( 0.057575m³ )
Items on Palette 108
Palette size 105*105*14.5
Total weight per Palette 840.96 KG
High Cube Container (HQ)
Items per Carton 3
Cartons per Palette 36
Net weight Carton 21.99 KG
Gross weight Carton 23.29 KG
Dimension Carton 35 x 35 x 47 cm ( 0.057575m³ )
Items on Palette 108
Palette size 105*105*14.5
Total weight per Palette 840.96 KG
