Product Code | G50BP |

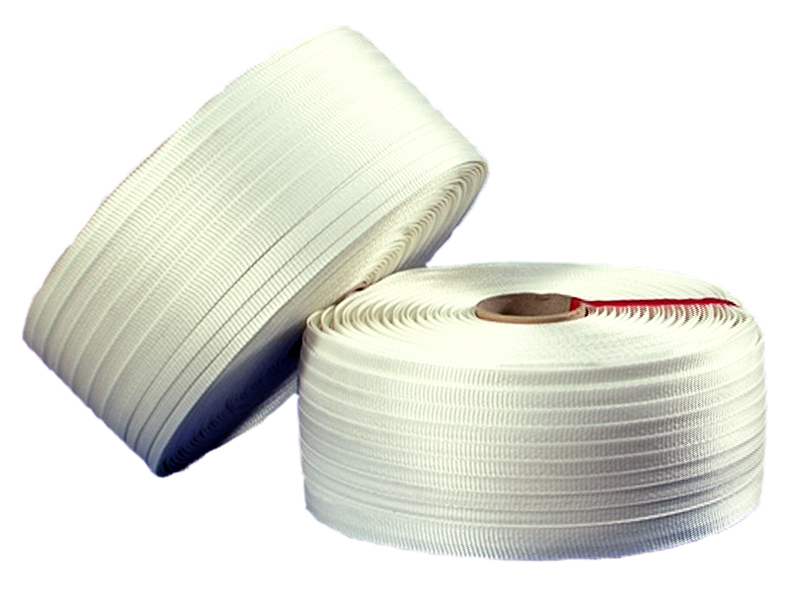

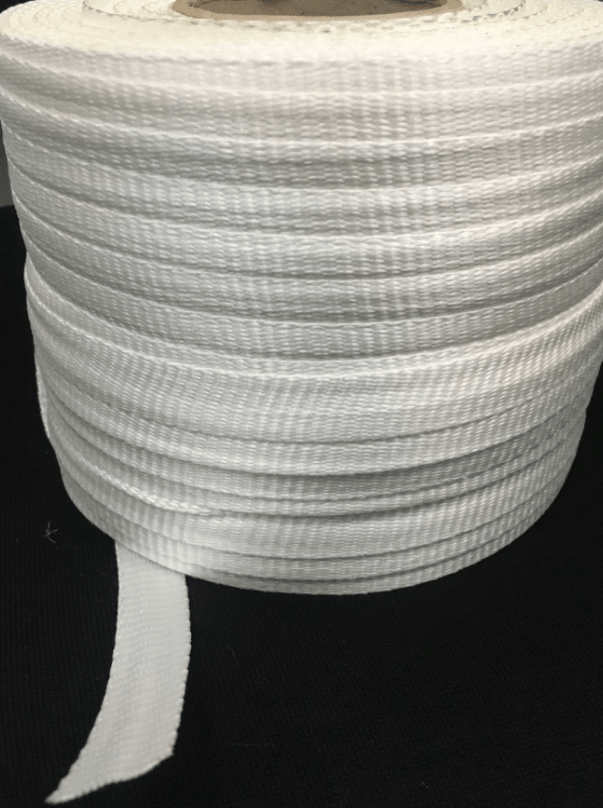

Product Name | Woven Strapping Bailing Press - G50BP - 16mm, 450 daN, 250m coil |
Product Size | 16 mm (5/8") |
Weight | 2.1000 KG |
MOQ | 288 |
Custom Tariff No. | 5806321000 |
GTIN/EAN13 | 4251858214583 |
Price |
Glue coated for usage in baling press machines
Woven strapping PES belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore it can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system.
A special glue coating prvents an uncontrolled unwinding from the coil and make this product perfect for the usage in baling press machines.
We provide this woven strapping band with a width of 16 mm and a traction force of 450 daN linear / 720 daN within a system.
OEMSERV's polyester woven belts does don't splice, are flexible and universally applicable.
- no damage to most surfaces
- no corrosion & easy handling
- low investment cost
- high shock absorbtion
- a small, manageable system
- limited resistance against lyes and acids
- no risk of injury for shippers and consignees in using or opening the strapping
- special glue coating for better performance

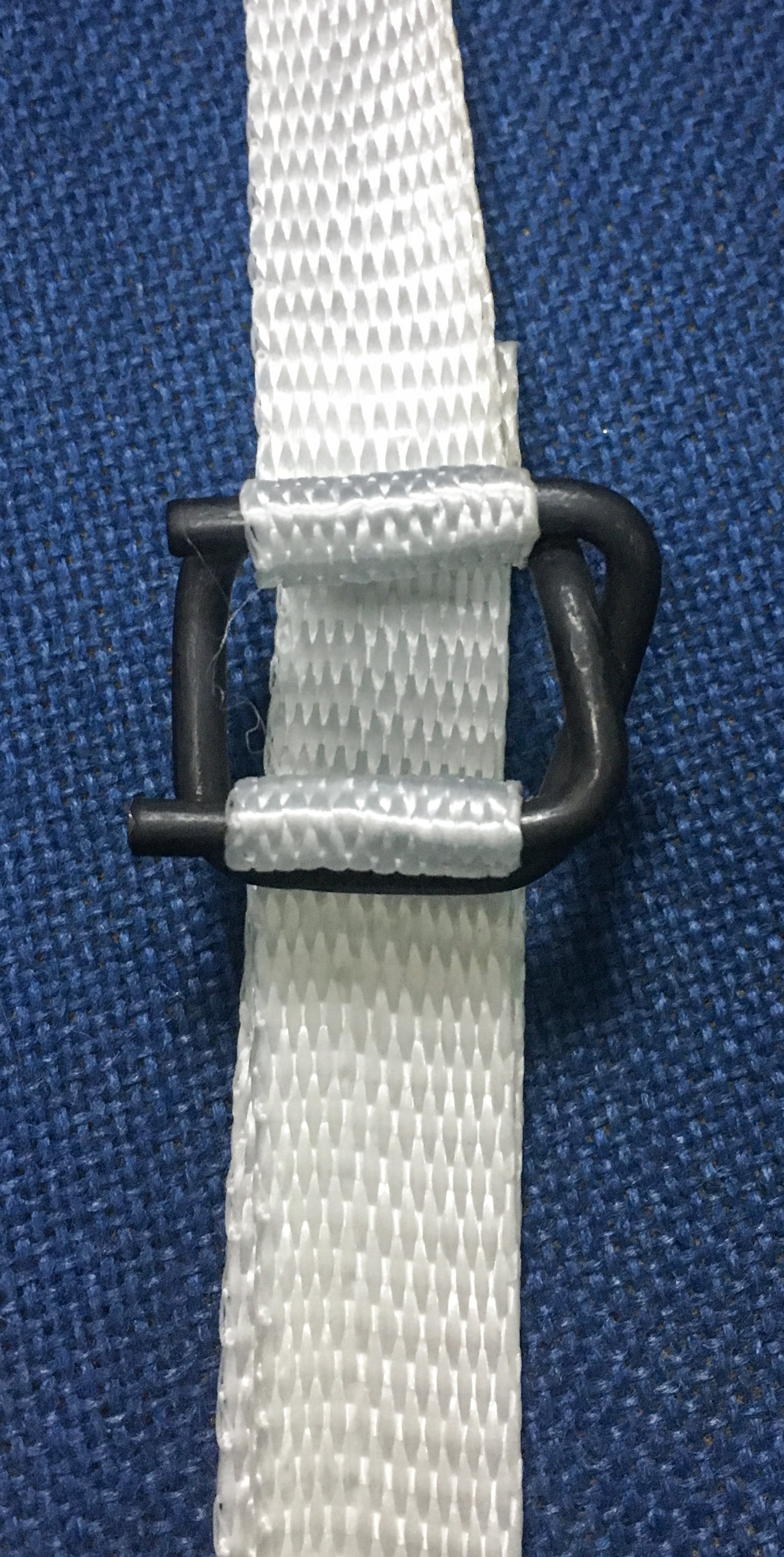

For all our woven polyester strapping belts we recommend to use phosphated wire buckles. In several test they have performed better than others.
* Note: linear and breaking strength are tested in laboratory environment. In open field applications forces and circumstances may cause different results.
1. Technical data | |
Material | High tensile polyester yarns, woven |
Material processing | Glue coated, pre tensioned and heat dried for higher strength |
2. Required standard | |
Minimum linear breaking strength | 450 daN |
Minimum system breaking strength | Doesn't apply for this product |
3. Tested data | |
Linear breaking strength | 000 daN |
System breaking strength | see tested combination(s) below |
4. Shipping | |
Custom Statistic code Tarif Number | 5806321000 |
Place of Origin | China |

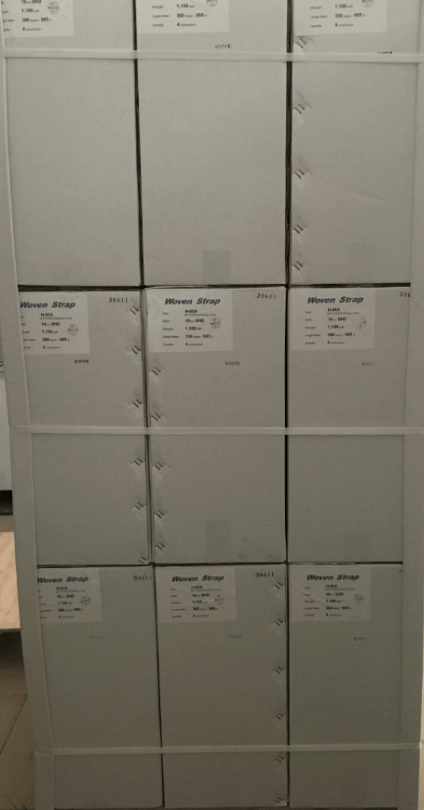

Standard Container | |

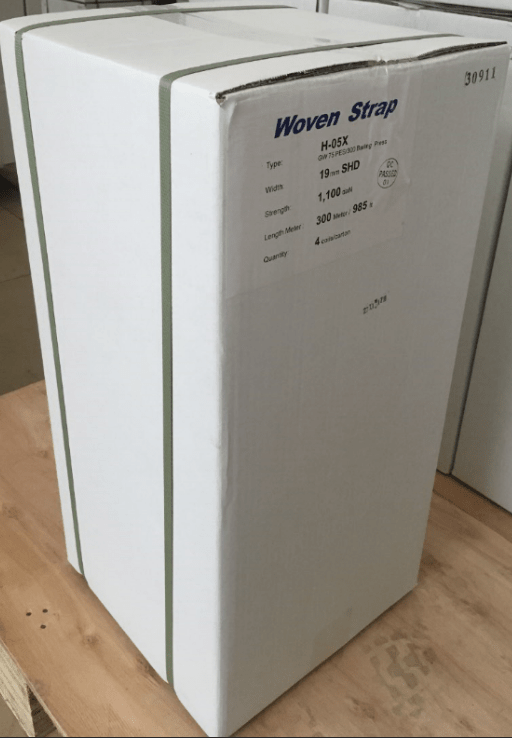

Items per Carton | 8 |
Cartons per Palette | 36 |
Net weight Carton | 18.64 KG |
Gross weight Carton | 19.74 KG |
Dimension Carton | 40 x 40 x 33 cm ( 0.0528m³ ) |

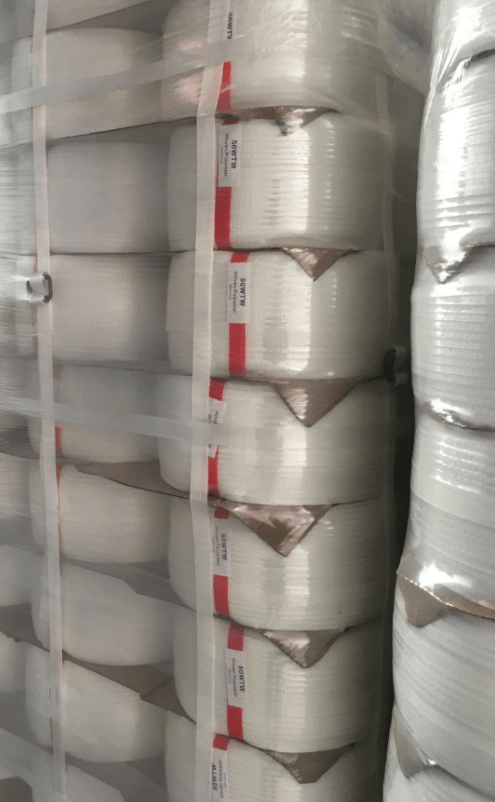

Items on Palette | 288 |
Palette size | 120*80*14.5 |
Total weight per Palette | 664.00 KG |
High Cube Container (HQ) | |
Items per Carton | 8 |
Cartons per Palette | 36 |
Net weight Carton | 18.64 KG |
Gross weight Carton | 19.74 KG |
Dimension Carton | 40 x 40 x 33 cm ( 0.0528m³ ) |
Items on Palette | 288 |
Palette size | 120*80*14.5 |
Total weight per Palette | 664.00 KG |
File Name | Description | File Size | Mime Type | |
---|---|---|---|---|
Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf |
