| Product Code | G150 |
| Product Name | Woven Lashing - G150 - 38mm, 3500/5600 daN, 200m, carton box |
| Product Size | 38 mm (3/2") |
| Weight | 12.4000 KG |
| MOQ | 45 |
| Custom Tariff No. | 5607500090 |
| GTIN/EAN13 | 4251858283114 |
| Price |

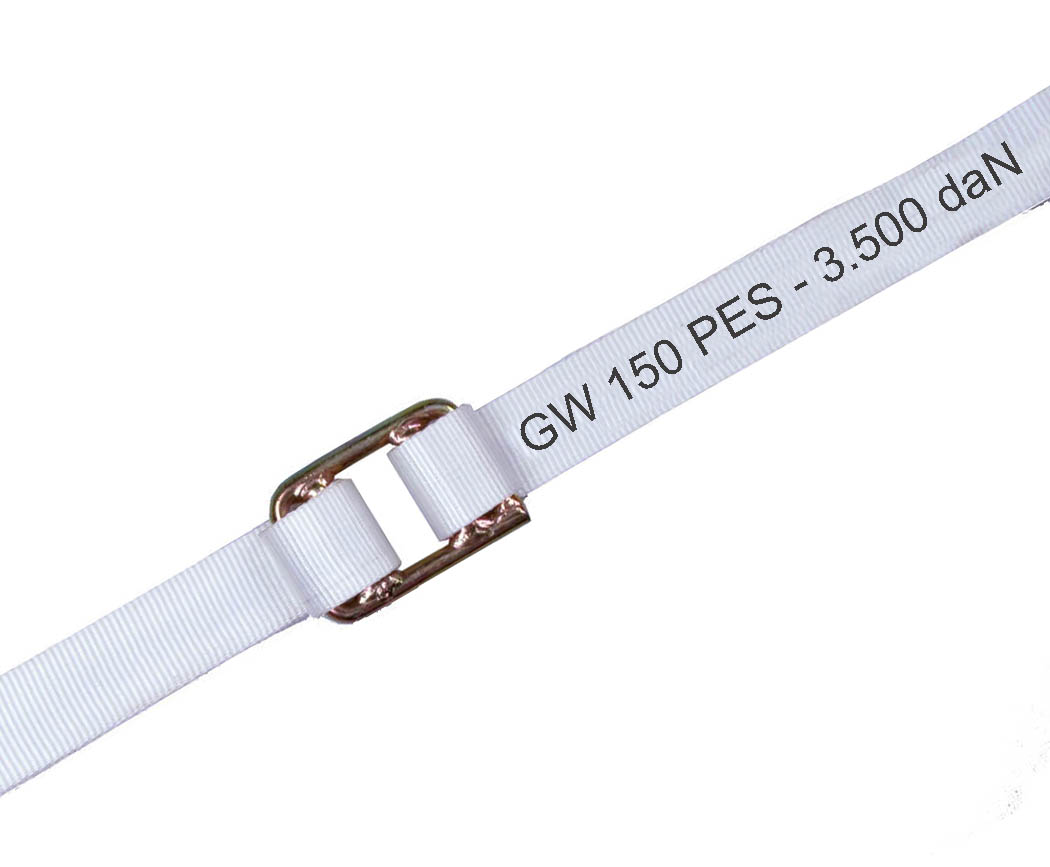

Polyester Woven Lashing
Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear strength | 3500 daN |
| Minimum system strength | 5600 daN |
| 3. Tested data | |
| Linear breaking strength | 3500 daN |
| System breaking strength | see tested combination(s) below |
| System breaking strength+GWS40RD | Test 1-5 ( 6192, 6364, 6380, 6257, 6373 ) Avg 6317 daN tested Apr 2017 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 1 |
| Cartons per Palette | 45 |
| Net weight Carton | 12.60 KG |
| Gross weight Carton | 14.40 KG |
| Dimension Carton | 40 x 40 x 40 cm ( 0.064m³ ) |
| Items on Palette | 45 |
| Palette size | 120 x 120 x 14.5 |
| Total weight per Palette | 0.00 KG |
| High Cube Container (HQ) | |
| Items per Carton | 1 |
| Cartons per Palette | 30 |
| Net weight Carton | 13.00 KG |
| Gross weight Carton | 14.80 KG |
| Dimension Carton | 40 x 40 x 40 cm ( 0.064m³ ) |
| Items on Palette | 30 |
| Palette size | 120 x 120 x 14.5 |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| G150 & FS40 GL TAS00002DH.pdf | New 2020 GL certificate | 285917 | application/pdf | Download |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| RoHsGW75PES.pdf | RoHS Report | 277567 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| Test_report_for_G150+GWS40RD.pdf | G150 Test report Apr 2017 | 156864 | application/pdf | |
| G150_&_FS40_GL_TAS00002DH.pdf | New 2020 GL certificate | 285917 | application/pdf |
