Product Code G106
Product Name Woven Lashing - G106 - 32mm, 2300/3700 daN, 250m, carton box
Product Size 32 mm (5/4")
Weight 9.5000 KG
MOQ 42
Custom Tariff No. 5607500090
GTIN/EAN13 EAN13 is valid.
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

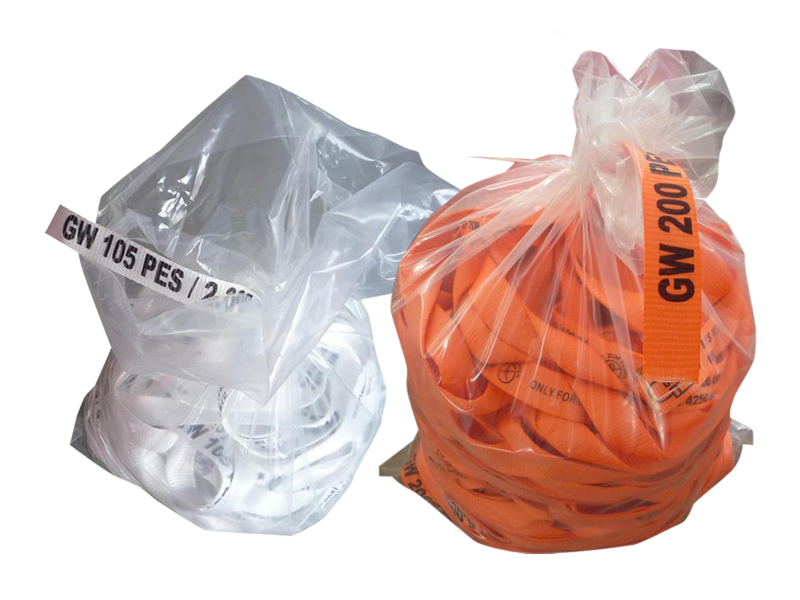

Polyester Woven Lashing G106

This woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • Linear breaking strength of 2300 daN
  • System strength min. 3680 daN
1. Technical data
Material High tensile polyester yarns, woven
Processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear strength 2300 daN
Minimum system strength 3700 daN
3. Tested data
Linear breaking strength Test 1-5 ( 2322, 2330, 2366, 2348, 2367 ) Avg 2347 daN tested Sep 2017
System breaking strength see tested combination(s) below
System breaking strength+FS30 Test 1-5 ( 4051, 3997, 4205, 4079, 4098 ) Avg 4086 daN tested Sep 2017
System breaking strength+GW30RD Test 1-5 ( 3856, 3917, 3968, 3954, 3913 ) Avg 3922 daN tested Sep 2017
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of Origin China
Standard Container
Items per Carton 1
Cartons per Palette 45
Net weight Carton 11.00 KG
Gross weight Carton 12.50 KG
Dimension Carton 37 x 37 x 40 cm ( 0.05476m³ )
Items on Palette 45
Palette size 112x112x14.5
Total weight per Palette 478.00 KG
High Cube Container (HQ)
Items per Carton 1
Cartons per Palette 45
Net weight Carton 9.50 KG
Gross weight Carton 11.00 KG
Dimension Carton 37 x 37 x 40 cm ( 0.05476m³ )
Items on Palette 45
Palette size 112x112x14.5
Total weight per Palette 478.00 KG
