| Product Code | SFC85 |
| Product Name | Safver Composite 85, strapping belt 25mm, B/S 1260 daN, 450m coil |
| Product Size | 25 mm (1") |
| Weight | 11.3750 KG |
| MOQ | 90 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858215856 |
| Price |
System breaking strength 1260 daN , 450 meter coil
...when good is good enough !
Our new developed Safver composite strappings are the answer to most customers demand for a good quality product at competitive price.
Driven through our German management and engineering back ground we are determined to produce the better product. This new composite belts are produced in our new fully automatic mashines and we can achieve better results in strength and quality then the average market offers.
Advantages:
- High System Strength
- No damage or scratch on any surface
- No corrosion - no splicing
- Comfortable handling, easy to push under pallets
- Low investment costs for this small, manageable system
- Retensionable & torsion absorbing
- No risk of injury for shippers and consignees in using or opening the strapping
- Weatherproof (UV radiation)
- Easy disposable

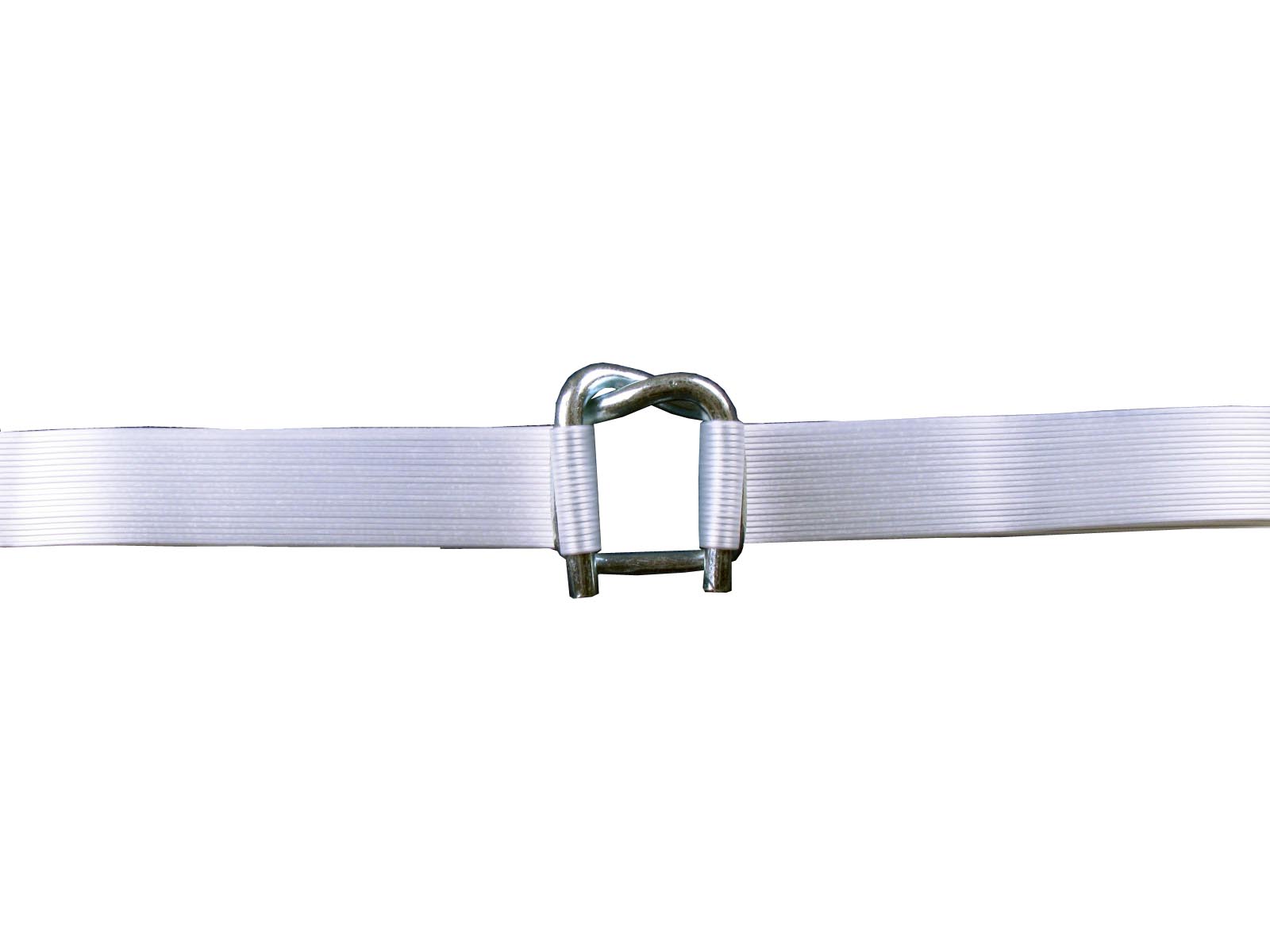

For all our Safver composite belts ww recommend nitrated wire buckles. In several test they have performed better than others.
* Note: the breaking strength is tested in laboratory environment. In open field applications forces and circumstances may cause different results.
| 1. Technical data | |
| Material | Untwisted high tensile yarns with polypropylene (PP) cover |
| Paper core dimensions | 200 x 190 x 5 mm |
| 2. Required standard | |
| Minimum linear breaking strength | N/A |
| Minimum system breaking strength | 1260 daN |
| 3. Tested data | |
| Linear breaking strength | this test doesn't apply for Safver composite belts |
| System breaking strength | see tested combination(s) below |
| System breaking strength with wire buckle WB25N5.0 | Test 1-5 ( 1303, 1286, 1306, 1281, 1309 ) AVG 1297 daN tested MAR 2016 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5607500090 |
| Place of origin | China |
| 5. Storage | |
| Shelf live | 12 month* |
| Conditions | * when packed in box in dry and dark condition |
| Long Term | Composite strapping will get harder/stiffer over the time, especially when exposed to UV light. But even a 5 year old belt will not loosen strength. The stiffness will make it less comfortable when pulled through the buckle, but the safety performance will NOT be affected. |
| Standard Container | |
| Items per Carton | 2 |
| Cartons per Palette | 45 |
| Net weight Carton | 18.44 KG |
| Gross weight Carton | 19.84 KG |
| Dimension Carton | 37 x 37 x 40 cm ( 0.05476m³ ) |
| Items on Palette | 90 |
| Palette size | 1120x1120x145 |
| Total weight per Palette | 0.00 KG |
| High Cube Container (HQ) | |
| Items per Carton | 2 |
| Cartons per Palette | 45 |
| Net weight Carton | 18.44 KG |
| Gross weight Carton | 20.04 KG |
| Dimension Carton | 37 x 37 x 40 cm ( 0.05476m³ ) |
| Items on Palette | 90 |
| Palette size | 1120x1120x145 |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Composite Strap TUV report 2013.pdf | TUV Report Composite Straps | 1442755 | application/pdf | |
| SGS report.pdf | SGS Report 2015 | 496329 | application/pdf | |
| RoHsGW85KF.pdf | RoHs Report ( universal ) | 266456 | application/pdf | |
| REACH138_COMPOSIT STRAP.pdf | Reach Certificate | 295604 | application/pdf | |
| SVHC-5S Report Composite Strap.pdf | SVHC-5S Report | 999737 | application/pdf | |
| UV composites test 688hours.pdf | UV Test Report Composite 688 hours | 1854099 | application/pdf | |
| Test_report_SFC_85.pdf | SFC 85 Test Report March 2016 | 181489 | application/pdf |
