| Product Code | G30BP |
| Product Name | Woven Strapping Bailing Press - G30BP - 9mm, 275 daN, 500m coil |
| Product Size | 09 mm (1/3") |
| Weight | 2.5000 KG |
| MOQ | 288 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858214507 |
| Price |

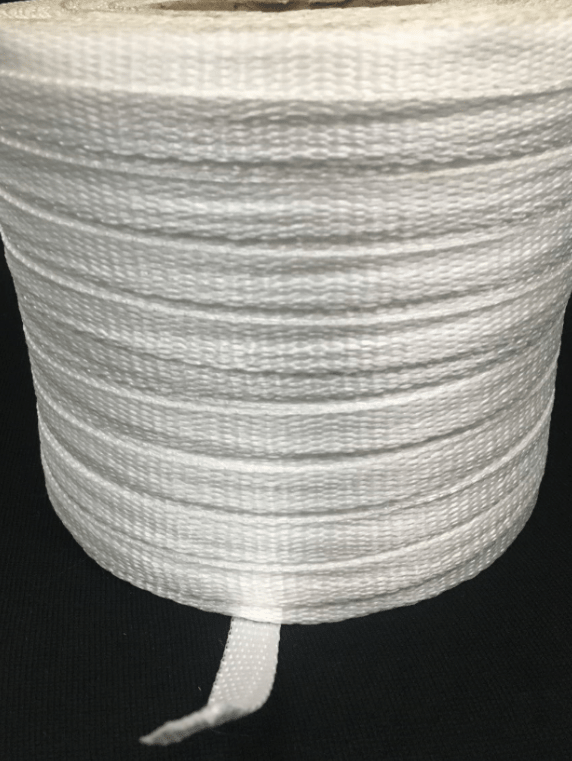

Glue coated for usage in baling press machines

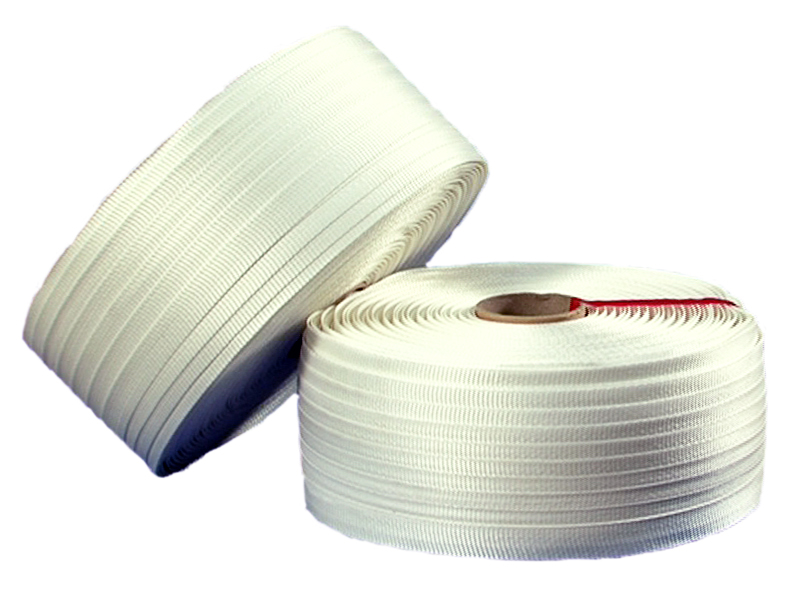

Woven strapping PES belts are made of high-tensile polyester yarns. Due to its material characteristics, it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore, it can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system.
A special glue coating prevents uncontrolled unwinding from the coil and makes this product perfect for usage in baling press machines.
We provide this woven strapping band with a width of 9 mm and a traction force of 275 daN linear / 440 daN within a system.
OEMSERV's polyester woven belts don't splice, are flexible and universally applicable.
- no damage to most surfaces
- no corrosion & easy handling
- low investment cost
- high shock absorption
- a small, manageable system
- limited resistance against lyes and acids
- no risk of injury for shippers and consignees in using or opening the strapping
- special glue coating for better performance
For all our woven polyester strapping belts we recommend using phosphate wire buckles. In several tests, they have performed better than others.
* Note: linear and breaking strength are tested in a laboratory environment. In open-field applications, forces and circumstances may cause different results.
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 275 daN |
| Minimum system breaking strength | Doesn't apply for this product |
| 3. Tested data | |
| Linear breaking strength | 000 daN |
| System breaking strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 8 |
| Cartons per Palette | 36 |
| Net weight Carton | 22.82 KG |
| Gross weight Carton | 24.22 KG |
| Dimension Carton | 40 x 40 x 33 cm ( 0.0528m³ ) |
| Items on Palette | 288 |
| Palette size | 120*80*14.5 |
| Total weight per Palette | 779.20 KG |
