Product Code 8240203
Product Name Nitrated Wire Buckle 19mm - WB19 N 4,0 - Box of 1000 pieces
Size 19 mm (3/4")
Weight 0.0177 KG
MOQ 48
Custom Tariff No. 7326208090
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

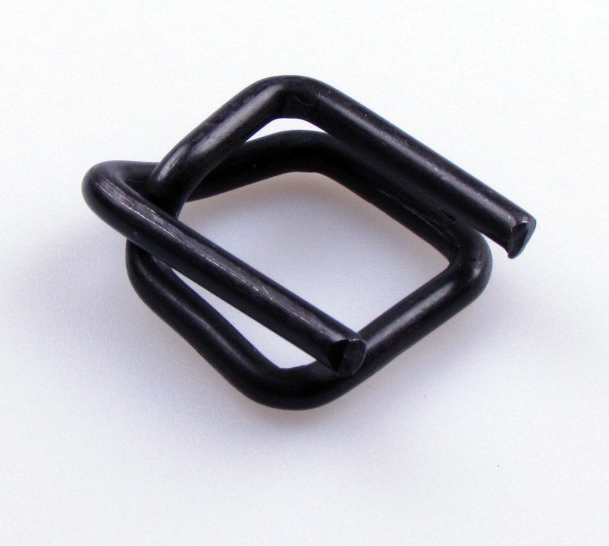

Nitrated Wire Buckles

Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface
Especially design for our Hot-melt and Evolution strapping

The nitrated buckles are quite blunt too, but more protective to the belts surface.

They deliver the best in high load performance and easy handling.
In order to maximize holding power, they have outstanding slip resistance due to its
self-lock feature.

Like all our buckles they are fully automated produced in our factory and have an
excellent price / performance ratio.

Width:            19 mm ( 3/4" )
Wire OD:       4,0 mm
Pieces/Box:  1000

Type of strapping:

GWL 60 PES
GW 60 PES
GW 65 PES





























1. Technical data
Material Bended steel wire
Wire treatment / rust protection Nitriding, a heat treating process that diffuses nitrogen into the surface of the metal to create a case hardened surface.
2. Required standard
System strength depend on belts used in the system
3. Tested data
System strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 7326909000
Place of Origin China
5. Storage
Shelf Life 12 month*
Condition * when packed in box in dry and dark condition
Long Term Even all wire buckles are coated for rust protection, they will show light traces of rust when stored longer time in humid conditions. Light rust on the surface is a cosmetic damage and make it harder to pull the belt through the buckle. But it actually improves the performance of the buckle in terms of slippage. The securing performance is NOT affected by light surface rust.
Standard Container
Items per Carton 1
Cartons per Palette 48
Net weight Carton 17.62 KG
Gross weight Carton 18.07 KG
Dimension Carton 34 x 26 x 20 cm ( 0.01768m³ )
Items on Palette 48
Palette size
Total weight per Palette 0.00 KG
File Name Description File Size Mime Type
SGSnitraBuckles.pdf SGS Report 171432 application/pdf

Login to Download

RoHsNitraBuckles.pdf RoHs Report 276794 application/pdf

Login to Download

REACH138_WIRE BUCKLE.pdf Reach Certificate 290692 application/pdf

Login to Download

SVHC-5S Report Nitrated Buckles.pdf SVHC-5S Report 1017102 application/pdf

Login to Download
