| Product Code | G40BP |
| Product Name | Woven Strapping Baling Press - G40BP - 13mm, 375 daN, 350m coil |
| Product Size | 13mm (1/2") |
| Weight | 7.1240 KG |
| MOQ | 288 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858214545 |
| Price |
Glue coated for usage in baling press machines

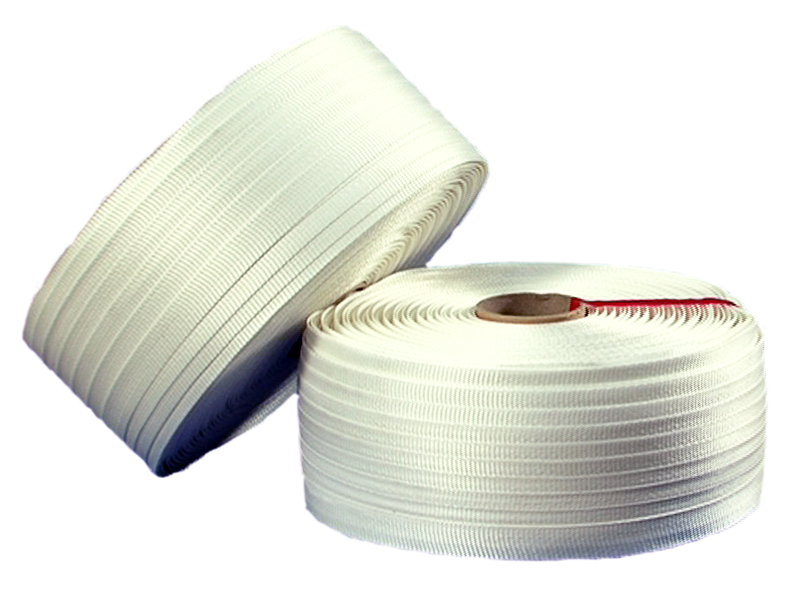

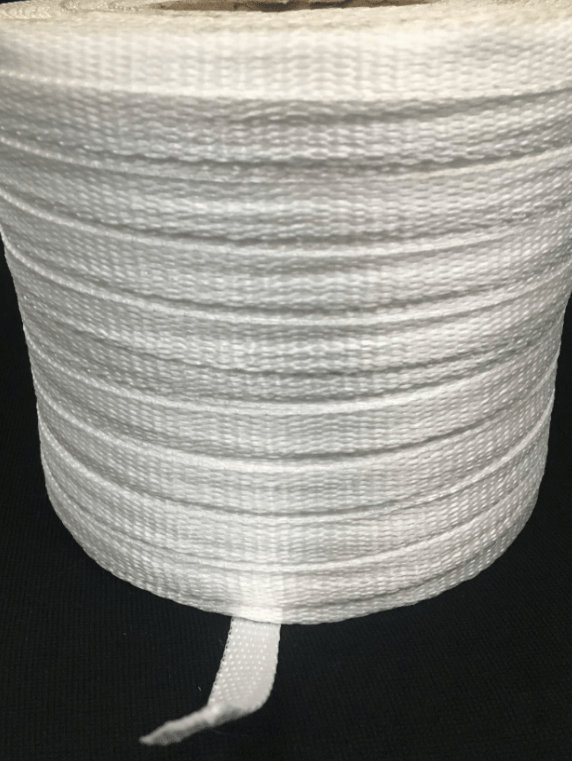

Woven strapping PES belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore it can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system.
A special glue coating prvents an uncontrolled unwinding from the coil and make this product perfect for the usage in baling press machines.
We provide this woven strapping band with a width of 13 mm and a traction force of 375 daN linear / 600 daN within a system.
OEMSERV's polyester woven belts does don't splice, are flexible and universally applicable.
Specification:
- no damage to most surfaces
- no corrosion & easy handling
- low investment cost
- high shock absorbtion
- a small, manageable system
- limited resistance against lyes and acids
- no risk of injury for shippers and consignees in using or opening the strapping
- special glue coating for better performance

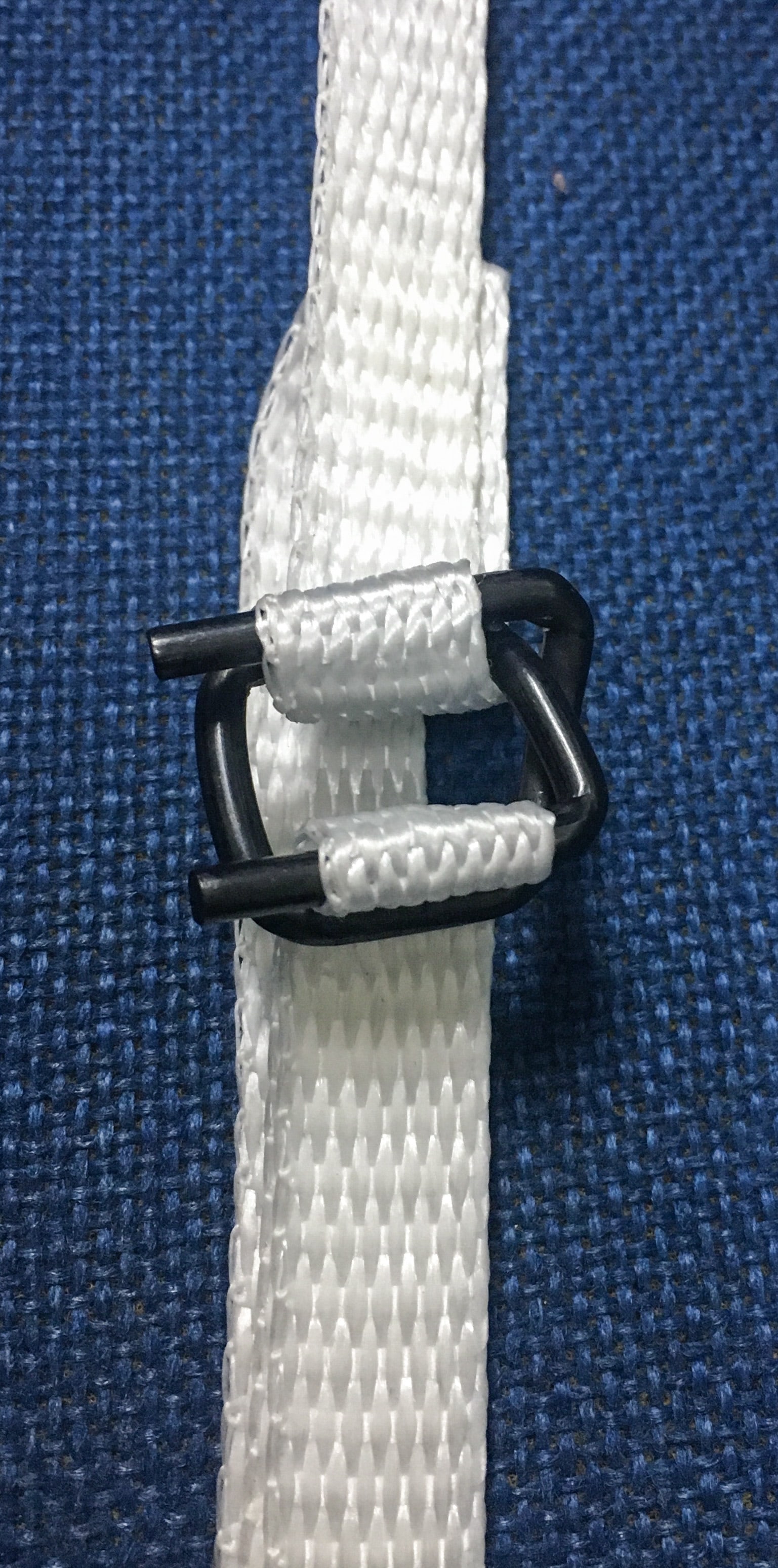

For all our woven polyester strapping belts we recommend to use phosphated wire buckles. In several test they have performed better than others.
* Note: linear and breaking strength are tested in laboratory environment. In open field applications forces and circumstances may cause different results.
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 375 daN |
| Minimum system breaking strength | Doesn't apply for this product |
| 3. Tested data | |
| Linear breaking strength | 000 daN |
| System breaking strength | see tested combination(s) below |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |
| Standard Container | |
| Items per Carton | 8 |
| Cartons per Palette | 36 |
| Net weight Carton | 21.18 KG |
| Gross weight Carton | 21.98 KG |
| Dimension Carton | 40 x 40 x 32 cm ( 0.0512m³ ) |
| Items on Palette | 288 |
| Palette size | |
| Total weight per Palette | 0.00 KG |
| High Cube Container (HQ) | |
| Items per Carton | 8 |
| Cartons per Palette | 36 |
| Net weight Carton | 21.18 KG |
| Gross weight Carton | 22.60 KG |
| Dimension Carton | 40 x 40 x 32 cm ( 0.0512m³ ) |
| Items on Palette | 288 |
| Palette size | |
| Total weight per Palette | 0.00 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
| RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf |
