Product Code G105 solo
Product Name Woven Lashing - G105 - 32mm, 2000/3200 daN, 250m loose in carton box
Product Size E. 32mm (5/4")
Weight 9.5000 KG
MOQ 45
Custom Tariff No. 5607500090
GTIN/EAN13 4251858217478
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

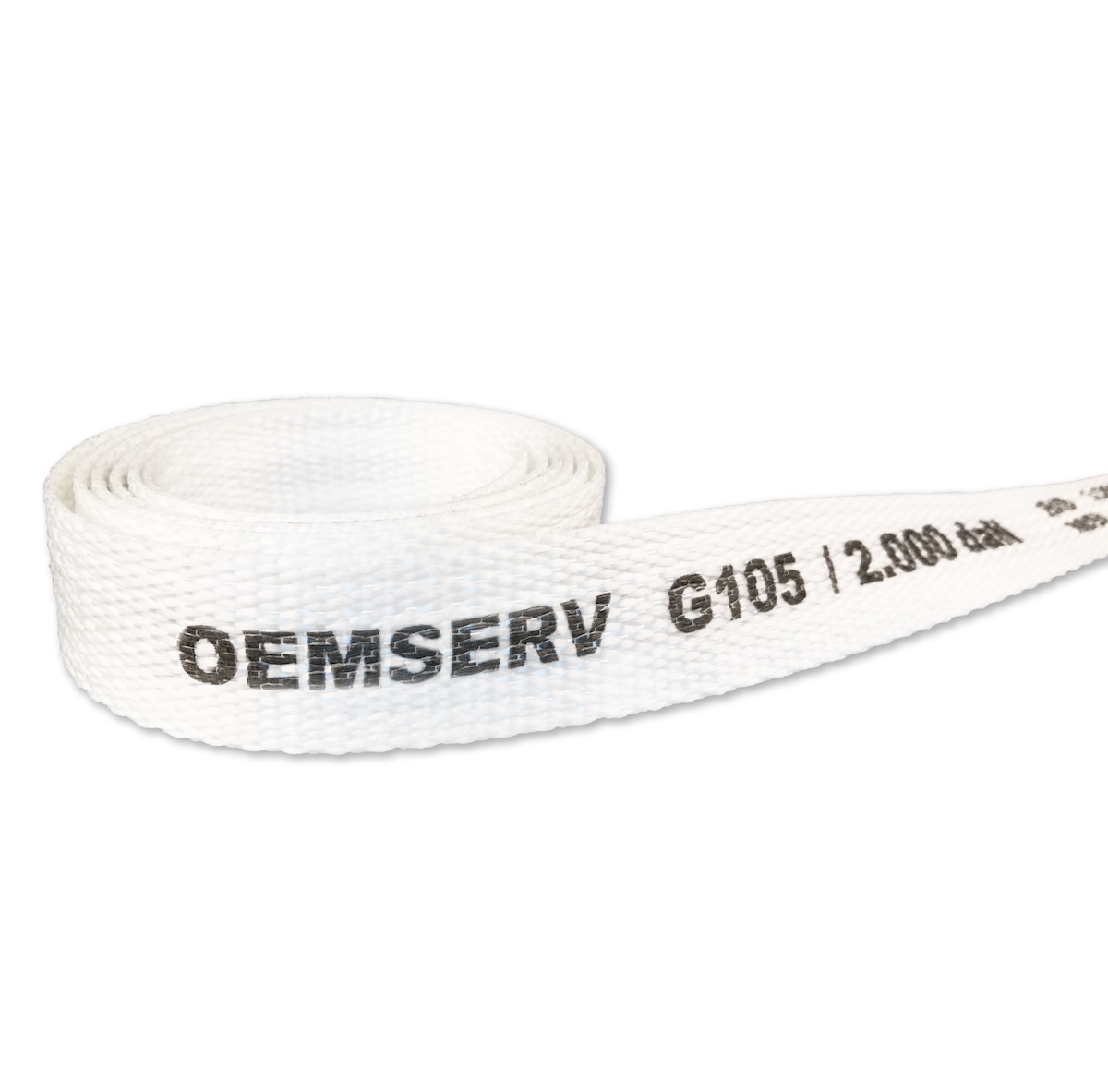

Polyester Woven Lashing

Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 32mm to 50mm
  • linear breaking strength available from 1500 to 7500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating
1. Technical data
Material High tensile polyester yarns, woven
Processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear strength 2000 daN
Minimum system strength 3200 daN
3. Tested data
Linear breaking strength 2000 daN
System breaking strength see tested combination(s) below
System breaking strength+GWS30RD Test 1-5 ( 3666, 3551, 3704, 3543, 3651 ) Avg 3623 daN tested Sep 2017
System breaking strength+FS30 Test 1-5 ( 3886, 3843, 3919, 3850, 3866 ) Avg 3873 daN tested Jun 2017
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of Origin China
4. Accessories

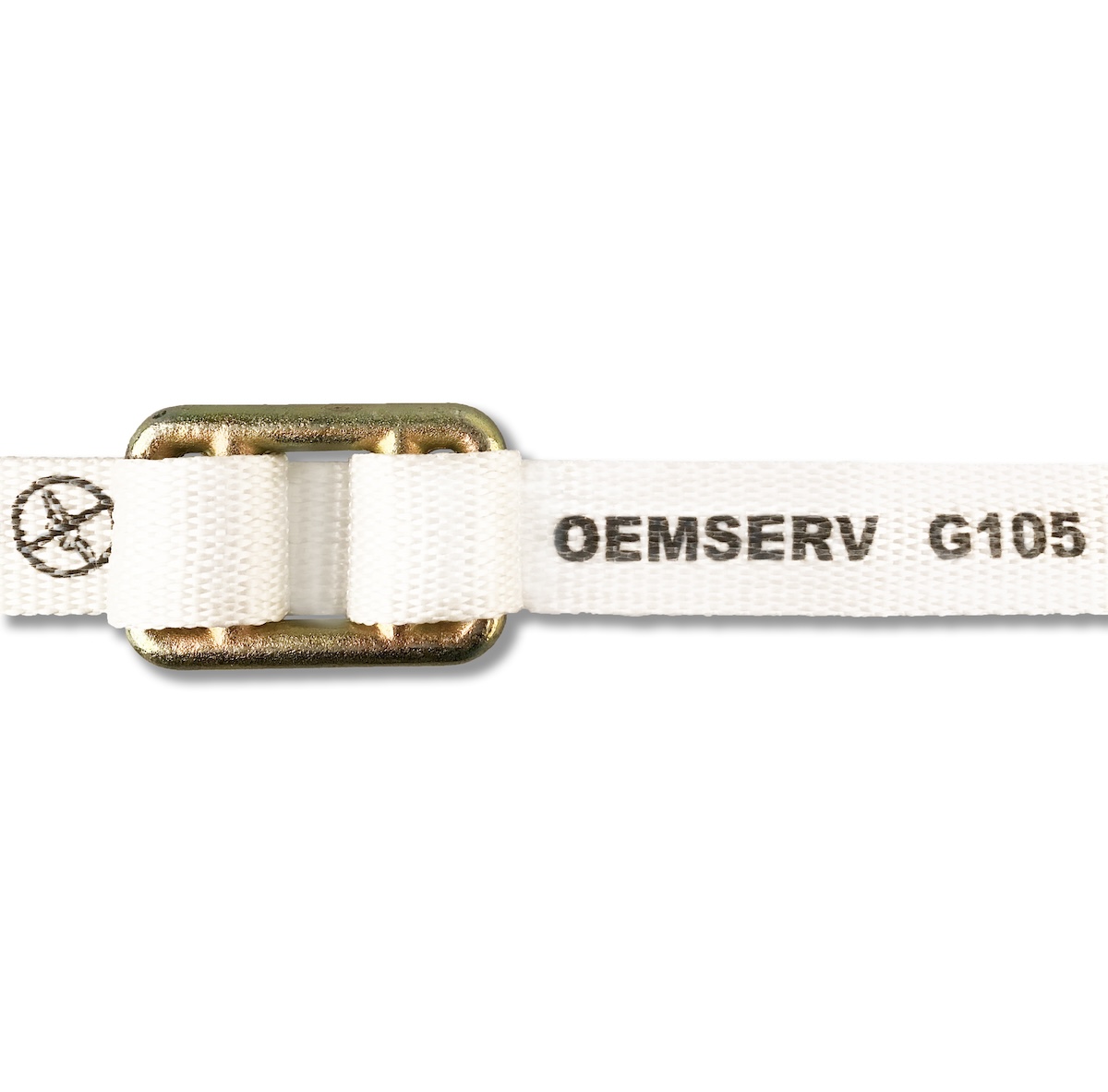

Recommended buckle GWS 30 RD
Recommended tensioner S-50
Standard Container
Items per Carton 1
Cartons per Palette 45
Net weight Carton 9.16 KG
Gross weight Carton 10.66 KG
Dimension Carton 37 x 37 x 40 cm ( 0.05476m³ )
Items on Palette 45
Palette size 112x112x14.5
Total weight per Palette 478.00 KG
High Cube Container (HQ)
Items per Carton 1
Cartons per Palette 45
Net weight Carton 9.16 KG
Gross weight Carton 10.66 KG
Dimension Carton 37 x 37 x 40 cm ( 0.05476m³ )
Items on Palette 45
Palette size 112x112x14.5
Total weight per Palette 478.00 KG
