Product Code G200 orange
Product Name Woven Lashing - G200 - ORANGE, 40mm, 5000/8500 daN, 200m in carton box
Product Size 40 mm (7/4")
Weight 18.6000 KG
MOQ 36
Custom Tariff No.
GTIN/EAN13 4251858213081
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

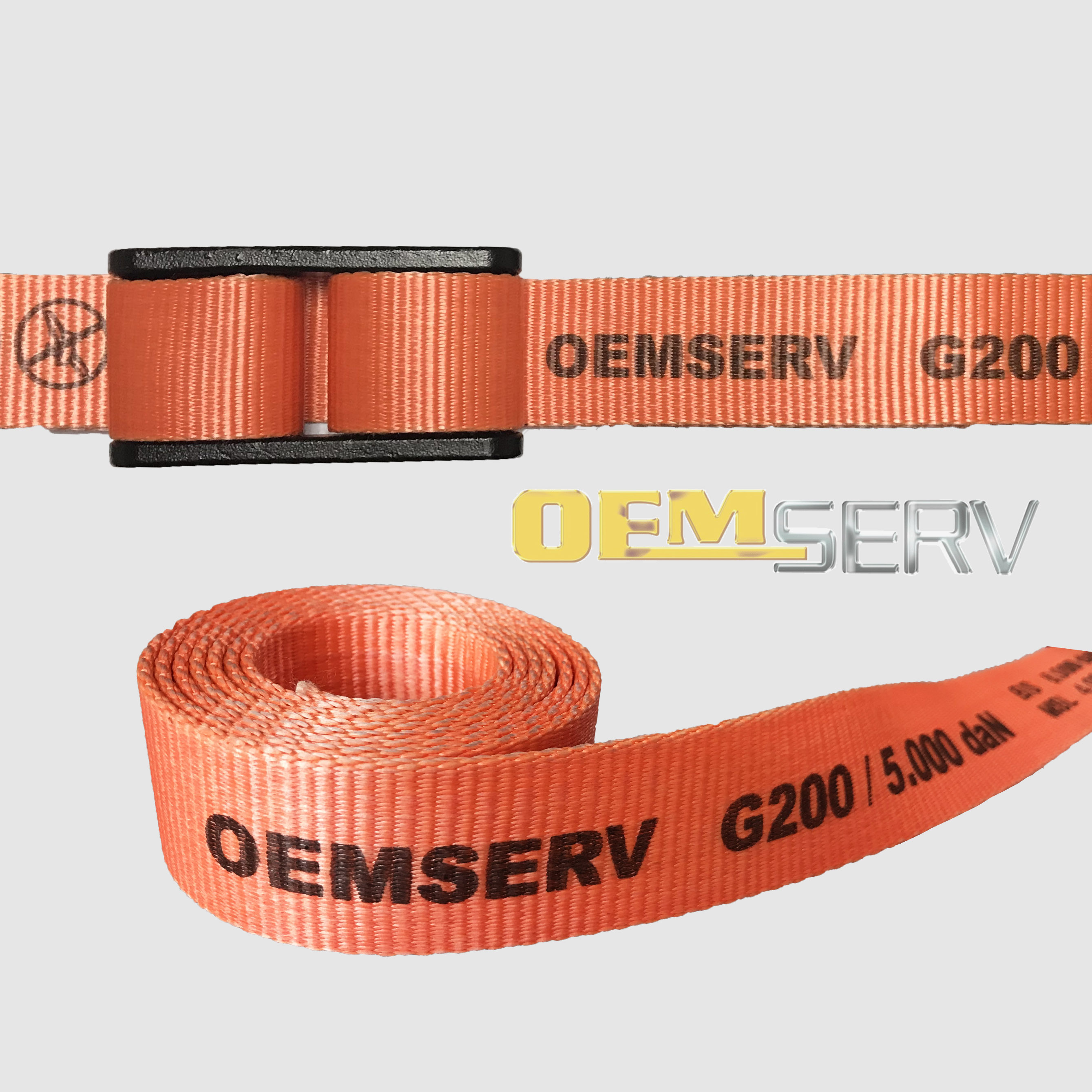

Polyester Woven Lashing

Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 32mm to 50mm
  • linear breaking strength available from 1500 to 7500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating
1. Technical data
Material High tensile polyester yarns, woven
Processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear strength 000 daN
Minimum system strength ooo daN
3. Tested data
Linear breaking strength 000 daN
System breaking strength see tested combination(s) below
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of Origin China
Standard Container
Items per Carton 1
Cartons per Palette 36
Net weight Carton 18.42 KG
Gross weight Carton 20.22 KG
Dimension Carton 40 x 40 x 40 cm ( 0.064m³ )
Items on Palette 36
Palette size 1200 x 800 x 145 mm
Total weight per Palette 744.00 KG
