| Product Code | G75 |
| Product Name | Woven Strapping - G75 - 19mm, 1100/1760 daN, 500m coil |
| Product Size | 19 mm (3/4") |
| Weight | 10.0000 KG |
| MOQ | 108 |
| Custom Tariff No. | 560750 |
| GTIN/EAN13 | 4251858211049 |
| Price |

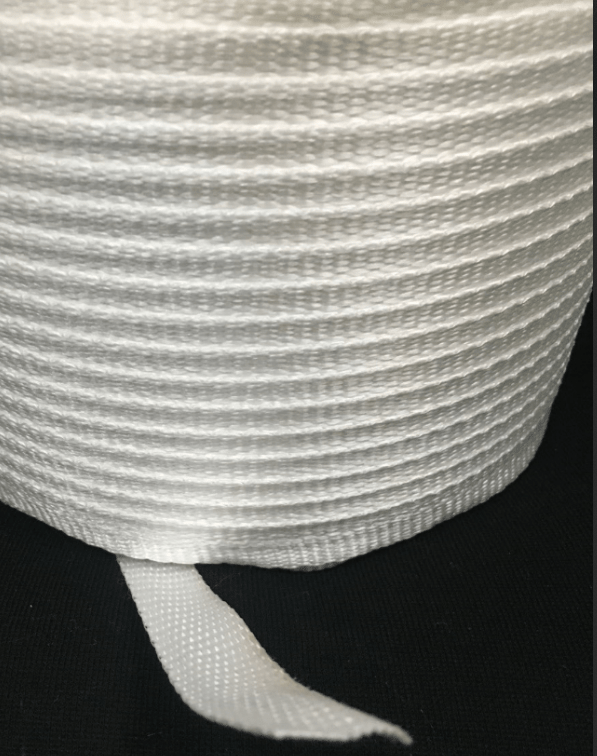

Polyester Woven Strapping
Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 1100 daN |
| Minimum system breaking strength | 1760 daN |
| 3. Tested data | |
| Linear breaking strength | Test 1-5 (1184, 1177, 1159, 1153, 1159 ) Avg 1166 daN tested Oct 2017 |
| System breaking strength | see tested combination(s) below |

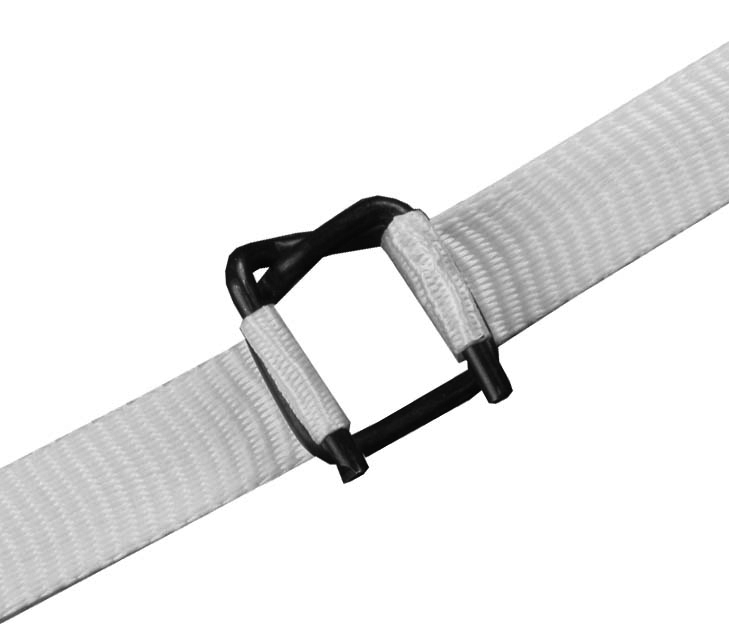

| System breaking strength+WB19P4.3 | Test 1-5 (1522, 1498, 1486, 1469, 1494 ) Avg 1494 daN tested Oct 2017 |
| System breaking strength+WB19N4.3 | N/A |
| System breaking strength+FB19 | Test 1-5 ( 1740, 1746, 1764, 1771, 1704 ) Avg 1745 daN tested Oct 2017 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |

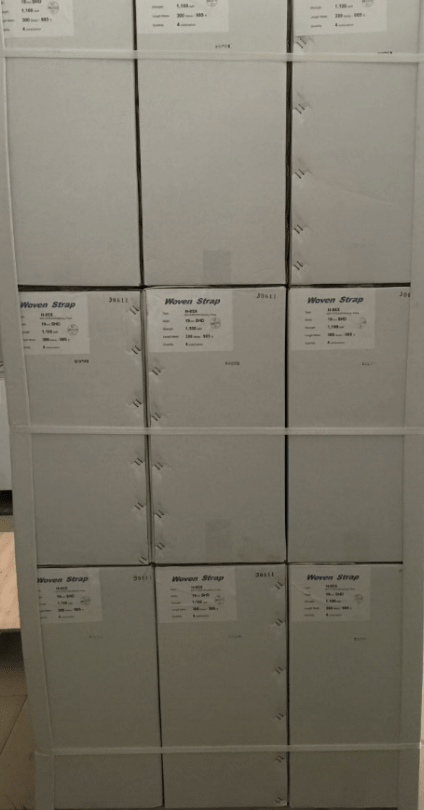

| Standard Container | |

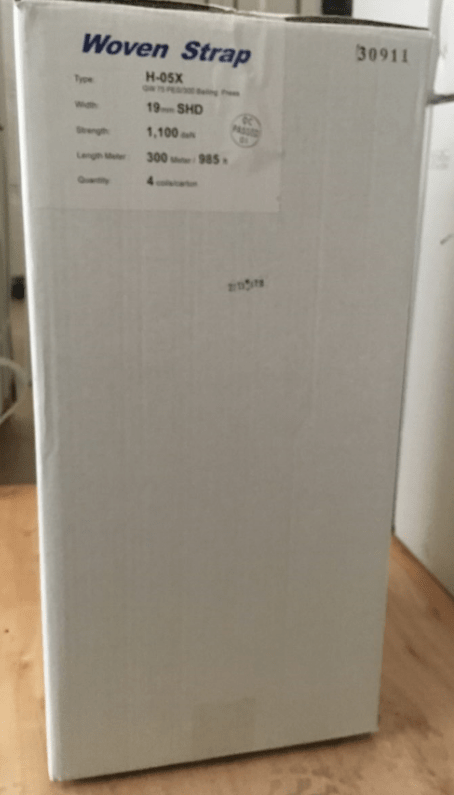

| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 29.16 KG |
| Gross weight Carton | 30.46 KG |
| Dimension Carton | 37 x 37 x 50 cm ( 0.06845m³ ) |
| Items on Palette | 108 |
| Palette size | 112*112*14.5 |
| Total weight per Palette | 1163.80 KG |
| High Cube Container (HQ) | |
| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 29.58 KG |
| Gross weight Carton | 31.08 KG |
| Dimension Carton | 37 x 37 x 50 cm ( 0.06845m³ ) |
| Items on Palette | 108 |
| Palette size | 112*112*14.5 |
| Total weight per Palette | 1163.80 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
| RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| 2024.10.30_G75_Test_Report.pdf | Test report October 2024 | 133837 | application/pdf | Download |
