Product Code G94
Product Name Woven Lashing - G94 - 32mm, 1500/2400 daN, 330m coil
Product Size B. 32 mm (5/4")
Weight 9.9700 KG
MOQ 108
Custom Tariff No. 5607500090
GTIN/EAN13 4251858217584
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

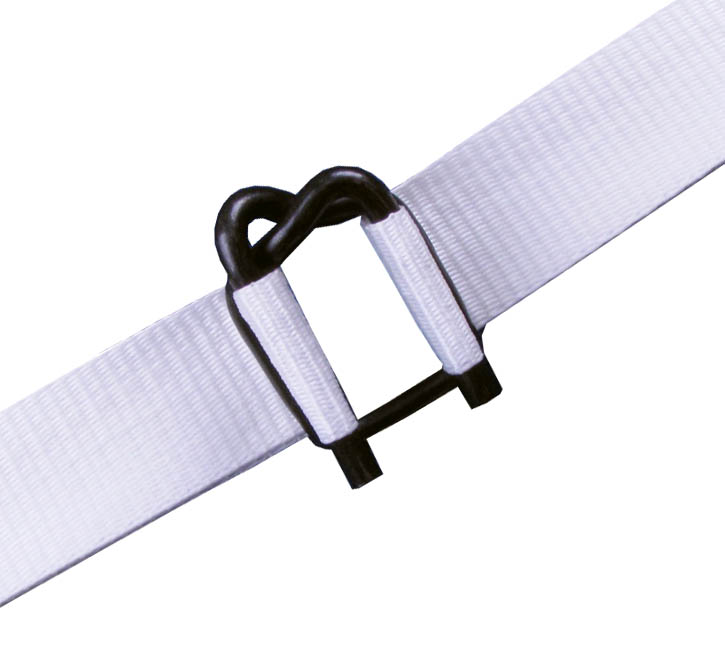

Polyester Woven Lashing

Woven lashing belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the lashing can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven lashing belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 32mm to 50mm
  • linear breaking strength available from 1500 to 7500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating







1. Technical data
Material High tensile polyester yarns, woven
Processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear strength 1500 daN
Minimum system strength 2400 daN
3. Tested data
Linear breaking strength 1500 daN
System breaking strength see tested combination(s) below
System breaking strength with buckle 3270P Test 1-3 ( 2442 - 2443 - 2431 ) AVG 2435 daN tested MAR 2017
System breaking strength with buckle 3270N Test 1-5 ( 2490 - 2519 - 2477 - 2507 - 2493 ) AVG 2497 daN tested DEC 2016
4. Shipping
Custom Statistic code Tarif Number 5607500090
Place of Origin China
Standard Container
Items per Carton 2
Cartons per Palette 54
Net weight Carton 20.58 KG
Gross weight Carton 21.98 KG
Dimension Carton 40 x 40 x 32 cm ( 0.0512m³ )
Items on Palette 108
Palette size 120*120*14.5
Total weight per Palette 0.00 KG
File Name Description File Size Mime Type
SGSwovenBelts.pdf SGS Report 187370 application/pdf

Login to Download

RoHsGW75PES.pdf RoHS Report 277567 application/pdf

Login to Download

REACH138_WOVEN STRAP.pdf Reach Certificate 293427 application/pdf

Login to Download

SVHC-5S Report Woven Strap.pdf SVHC-5S Report 1000154 application/pdf

Login to Download

2017-SVHC-5 NEW-woven strap.pdf 2017-SVHC-5 NEW-Report 605518 application/pdf

Login to Download
