| Product Code | G40L |
| Product Name | Woven Strapping - G40L - 13mm, 295/450 daN, 1200m coil |
| Product Size | 13mm (1/2") |
| Weight | 7.0074 KG |
| MOQ | 108 |
| Custom Tariff No. | 5806321000 |
| GTIN/EAN13 | 4251858210868 |
| Price |

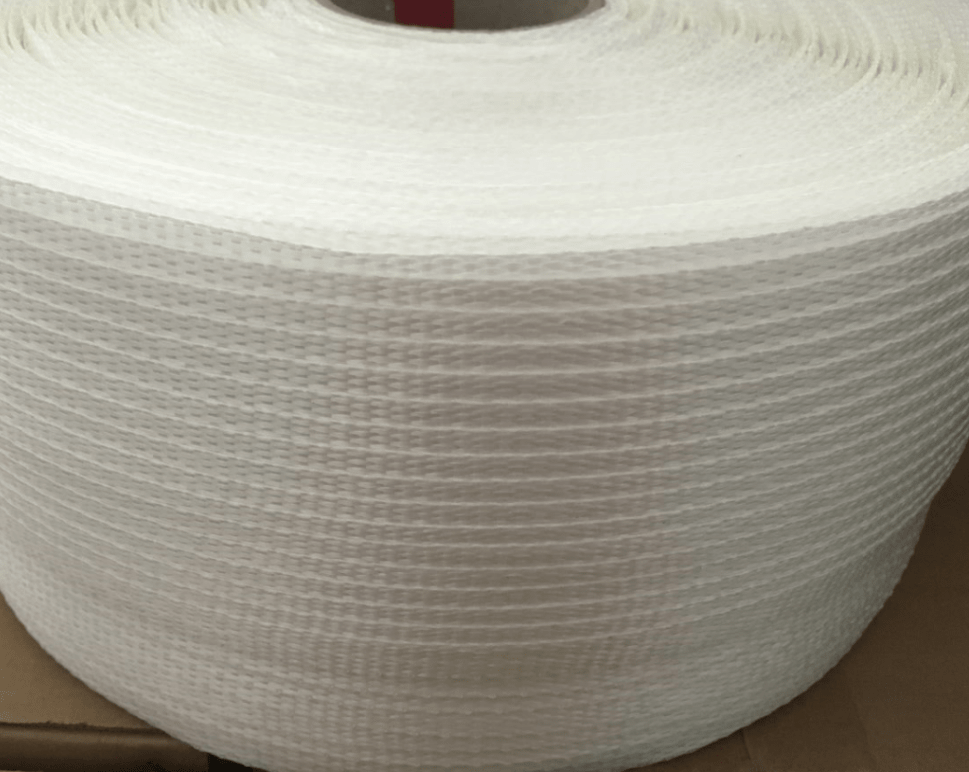

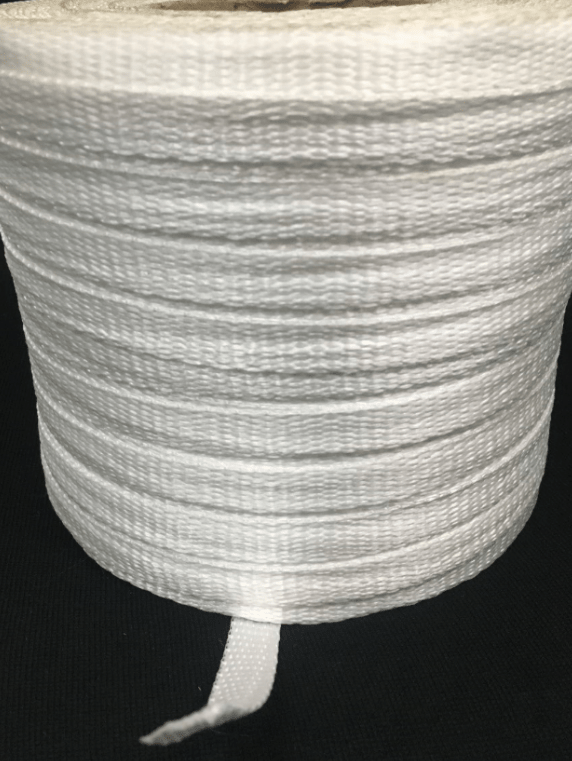

Polyester Woven Strapping 13mm , 1200 meter coil
Linear strength 295 daN , System Strength up to 484 daN
Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.
Specifications
| 1. Technical data | |
| Material | High tensile polyester yarns, woven |
| Material processing | Glue coated, pre tensioned and heat dried for higher strength |
| 2. Required standard | |
| Minimum linear breaking strength | 295 daN |
| Minimum system breaking strength | 450 daN |
| 3. Tested data | |
| Linear breaking strength | Test 1-5 (343, 317, 349, 307, 345 ) Avg 332 daN Testes Nov 2017 |
| System breaking strength | see tested combination(s) below |

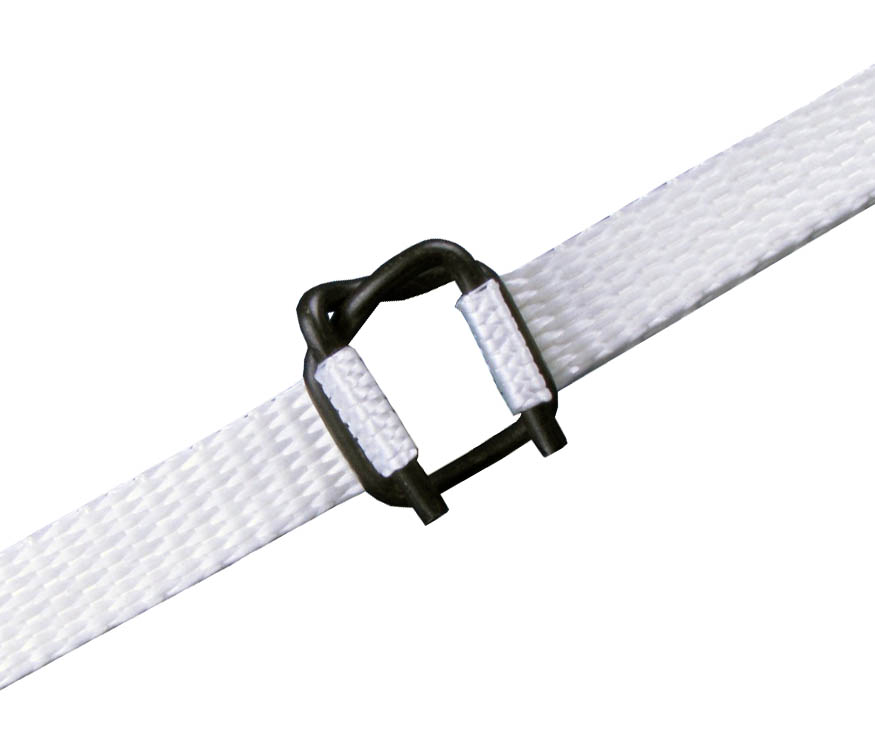

| System breaking strength with buckle 1333P | Test 1-5 ( 562, 595, 568, 505, 525 ) Avg 551 daN Tested Nov 2017 |
| System breaking strength with buckle 1333N | Test 1-5 ( 485 , 479, 494 , 477 , 485 ) Avg 484 daN tested Dec 2016 |
| 4. Shipping | |
| Custom Statistic code Tarif Number | 5806321000 |
| Place of Origin | China |
| Standard Container | |

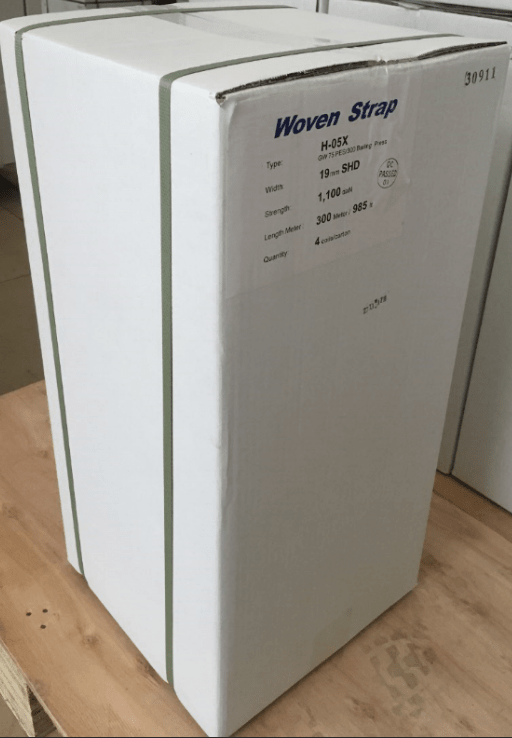

| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 22.38 KG |
| Gross weight Carton | 23.38 KG |
| Dimension Carton | 33 x 33 x 47 cm ( 0.051183m³ ) |
| Items on Palette | 108 |
| Palette size | 100*100*14.5 |
| Total weight per Palette | 803.60 KG |
| High Cube Container (HQ) | |
| Items per Carton | 3 |
| Cartons per Palette | 36 |
| Net weight Carton | 22.38 KG |
| Gross weight Carton | 23.38 KG |
| Dimension Carton | 33 x 33 x 47 cm ( 0.051183m³ ) |
| Items on Palette | 108 |
| Palette size | 100*100*14.5 |
| Total weight per Palette | 803.60 KG |
| File Name | Description | File Size | Mime Type | |
|---|---|---|---|---|
| Woven Strap TUV report 2013.pdf | Woven Strap TUV report | 1423135 | application/pdf | |
| RoHSGW60PES.pdf | RoHs Report | 255694 | application/pdf | |
| SGSwovenBelts.pdf | SGS Report | 187370 | application/pdf | |
| REACH138_WOVEN STRAP.pdf | Reach Certificate | 293427 | application/pdf | |
| SVHC-5S Report Woven Strap.pdf | SVHC-5S Report | 1000154 | application/pdf | |
| 2017-SVHC-5 NEW-woven strap.pdf | 2017-SVHC-5 NEW-Report | 605518 | application/pdf | |
| Test_report_for_G40L.pdf | G40L Test Report November 2017 | 227332 | application/pdf |
