Product Code G85
Product Name Woven Strapping - G85 - 25mm, 1000/1600 daN, 500m coil
Product Size 25 mm (1")
Weight 8.9700 KG
MOQ 108
Custom Tariff No. 560750
GTIN/EAN13 4251858211087
Price

Login to view Prices

ADDITIONAL PRODUCT IMAGES

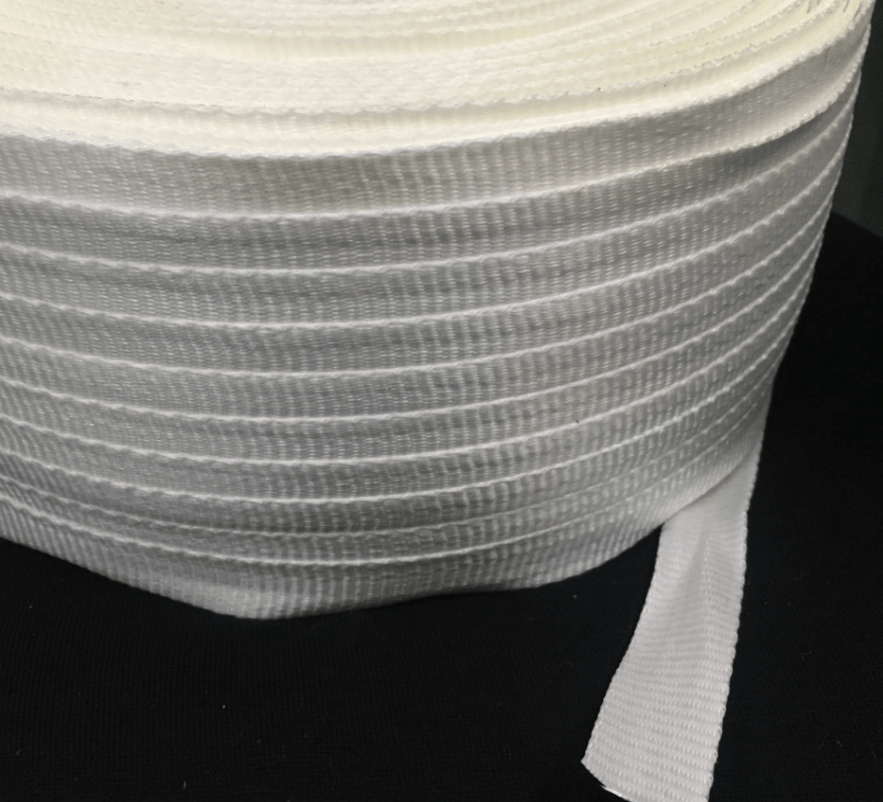

Polyester Woven Strapping

Woven strapping belts are made of high tensile polyester yarns. Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture. Furthermore the strapping can be retensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system. Woven strapping belts will not splice, are flexible and universally applicable.

Specifications

  • no damage to most surfaces
  • no corrosion & easy handling
  • low investment cost
  • high shock absorption
  • a small, manageable system
  • limited resistance against lyes and acids
  • no risk of injury for shippers and consignees in using or opening the strapping
  • available width 13mm to 25mm
  • linear breaking strength available from 295 to 1500 daN
  • special glue coating for usage
  • for baling press machines available with special glue coating



1. Technical data
Material High tensile polyester yarns, woven
Material processing Glue coated, pre tensioned and heat dried for higher strength
2. Required standard
Minimum linear breaking strength 1000 daN
Minimum system breaking strength 1600 daN
3. Tested data
Linear breaking strength Test 1-5 ( 1035, 1022, 1046, 1006, 1042 ) Avg 1030 daN tested Oct 2017
System breaking strength see tested combination(s) below
System breaking strength+BF8S-2560P Test 1-5 ( 1604, 1690, 1626, 1655, 1645 ) Avg 1644 daN tested Oct 2017
System breaking strength+WB25N5.0 N/A
4. Shipping
Custom Statistic code Tarif Number 5806321000
Place of Origin China
Standard Container
Items per Carton 3
Cartons per Palette 36
Net weight Carton 26.58 KG
Gross weight Carton 27.83 KG
Dimension Carton 37 x 37 x 47 cm ( 0.064343m³ )
Items on Palette 108
Palette size 112*112*14.5
Total weight per Palette 0.00 KG
High Cube Container (HQ)
Items per Carton 3
Cartons per Palette 36
Net weight Carton 26.58 KG
Gross weight Carton 28.08 KG
Dimension Carton 37 x 37 x 47 cm ( 0.064343m³ )
Items on Palette 108
Palette size 112*112*14.5
Total weight per Palette 0.00 KG
File Name Description File Size Mime Type
Woven Strap TUV report 2013.pdf Woven Strap TUV report 1423135 application/pdf

Login to Download

RoHSGW60PES.pdf RoHs Report 255694 application/pdf

Login to Download

SGSwovenBelts.pdf SGS Report 187370 application/pdf

Login to Download

REACH138_WOVEN STRAP.pdf Reach Certificate 293427 application/pdf

Login to Download

SVHC-5S Report Woven Strap.pdf SVHC-5S Report 1000154 application/pdf

Login to Download

2017-SVHC-5 NEW-woven strap.pdf 2017-SVHC-5 NEW-Report 605518 application/pdf

Login to Download

GL GW 85 PES + BF8.pdf German Lloyd Certificate 19573 application/pdf

Login to Download

Test_report_for_G85.pdf G85 test report oct 2017 228734 application/pdf

Login to Download

G85_&_BF8S-2560P_GL_TAS00002DF.pdf New 2020 GL certificate 287084 application/pdf

Login to Download
